500kg Engine Leveler Adjustable Support Bar for Auto Repair Shops

Adjustable Engine Support for Professional Workshops

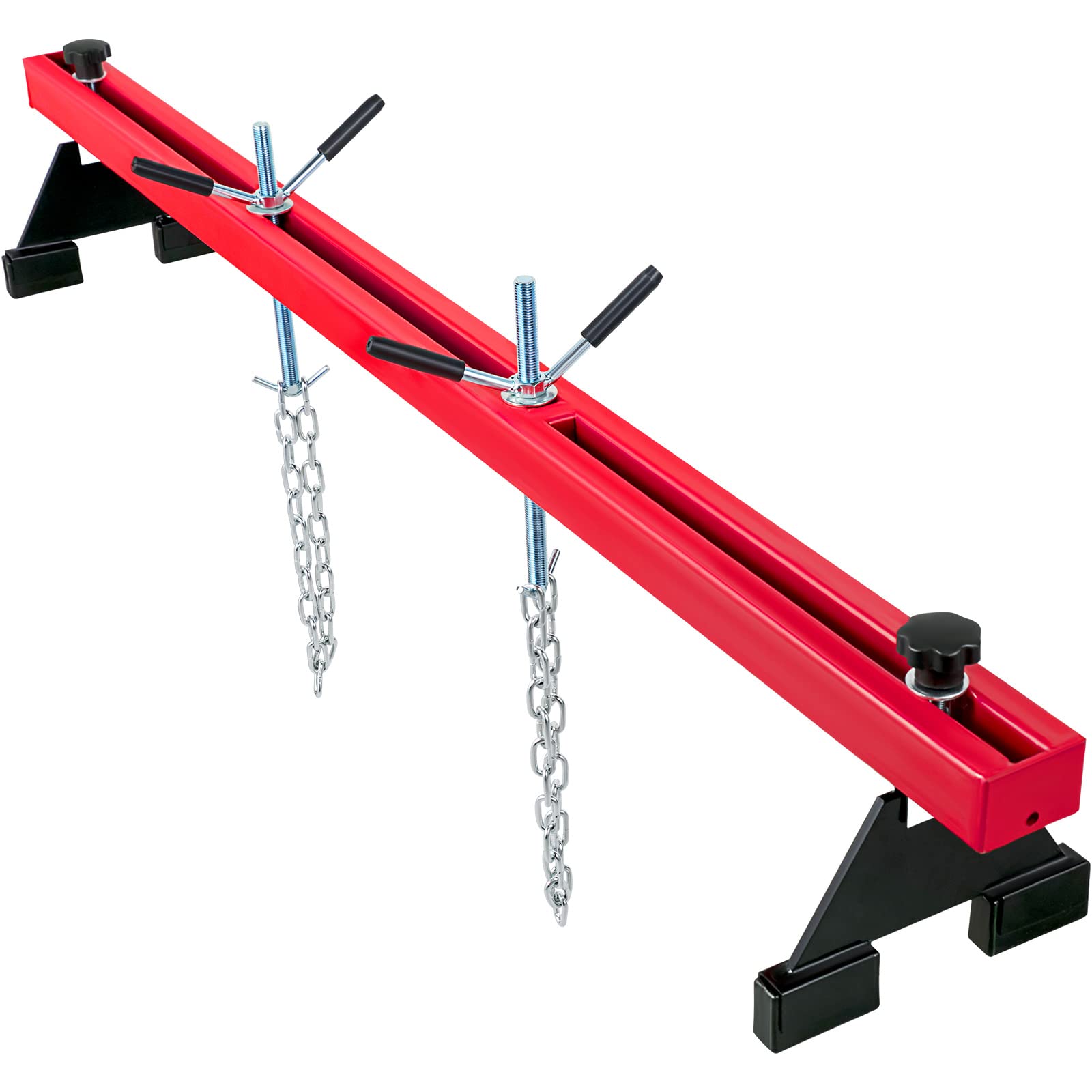

The TPH04-3305 500kg Engine Leveler is designed to support and position an engine during automotive repair and maintenance. Its adjustable crossbeam spans 28.74–58.27 inches / 730–1,480 mm, allowing technicians to adapt the tool to different engine-bay widths.

The threaded adjustment system provides up to 9.17 inches / 233 mm of vertical travel for controlled engine positioning. Reinforced T13 threaded rods and 12.20-inch / 310 mm screws help technicians make accurate adjustments during servicing.

Q235 Steel Structure

The main structure is manufactured from Q235 steel. The square tubing has a wall thickness of 0.098 inch / 2.5 mm, supporting a rated Max capacity of 500 kg / 1,102 lb.

The 13.19-inch / 335 mm wide bases distribute contact across the vehicle body support area. Operators must confirm suitable support points and keep the applied load within the rated capacity.

Hardened Chains and Zinc-Plated Components

The engine leveler uses 31.50-inch / 800 mm chains made from hardened A3 steel. The chain diameter is 0.197 inch / 5 mm. Both the chains and threaded components are zinc-plated for additional surface protection during use, storage and transportation.

Suitable B2B Applications

This engine support tool is suitable for:

• Automotive repair workshops
• Engine maintenance facilities
• Fleet service centers
• Garage equipment distributors
• Automotive tool wholesalers
• Repair-tool importers

Technical Specifications

Specification	Details
Model	TPH04-3305
Product Type	Engine Leveler / Engine Support Bar
Max Capacity	500 kg / 1,102 lb / 0.5 metric ton
Product Size	59.06 × 32.28 × 2.36 in / 1,500 × 820 × 60 mm
Working Range	28.74–58.27 in / 730–1,480 mm
Height Adjustment	0–9.17 in / 0–233 mm
Main Material	Q235 steel
Square Tube Wall Thickness	0.098 in / 2.5 mm
Base Width	13.19 in / 335 mm
Screw Length	12.20 in / 310 mm
Threaded Rod	Reinforced T13 thread
Chain Length	31.50 in / 800 mm
Chain Diameter	0.197 in / 5 mm
Chain Material	Hardened A3 steel
Surface Treatment	Zinc-plated chains and threaded components
Net Weight	35.27 lb / 16 kg
Gross Weight	37.48 lb / 17 kg
Package Quantity	1 piece per carton
Package Size	60.24 × 6.69 × 7.48 in / 153 × 17 × 19 cm
MOQ	200 pieces
Unit Price	US$29.11 per piece

Why This Engine Leveler Stands Out

• Clearly specified 500 kg / 1,102 lb rated Max capacity
• Wide 730–1,480 mm adjustable working range
• Controlled 0–233 mm vertical adjustment
• Q235 steel structure with disclosed 2.5 mm wall thickness
• Hardened 5 mm A3 steel chains
• Zinc-plated chain and threaded components
• Transparent carton size, net weight and gross weight
• Suitable for workshop, distributor and wholesale sourcing

Why Partner With Us

• Model-specific specifications help buyers compare products accurately.
• MOQ and unit packaging information are stated clearly.
• Current price, configuration and delivery terms can be confirmed before ordering.
• Packaging data supports freight and warehouse planning.
• Buyers can request destination-market compliance documents applicable to the ordered model.

Packing and Delivery

Each engine leveler is packed individually.

• Quantity: 1 piece per carton
• Carton Size: 60.24 × 6.69 × 7.48 in / 153 × 17 × 19 cm
• Net Weight: 35.27 lb / 16 kg
• Gross Weight: 37.48 lb / 17 kg
• MOQ: 200 pieces

Final container quantity, lead time, shipping cost, payment terms and destination-market documents must be confirmed in the quotation.

FAQ

What is the Max capacity of model TPH04-3305?

The rated Max capacity is 500 kg, equivalent to approximately 1,102 lb or 0.5 metric ton.

What working range does this engine leveler provide?

Its adjustable working range is 28.74–58.27 inches / 730–1,480 mm.

How much vertical adjustment is available?

The threaded adjustment system provides 0–9.17 inches / 0–233 mm of vertical travel.

What material is used for the main structure?

The main structure uses Q235 steel with 0.098-inch / 2.5 mm wall tubing.

What are the chain specifications?

The chains are 31.50 inches / 800 mm long and use hardened 0.197-inch / 5 mm A3 steel.

Are the chains surface treated?

Yes. The chains and threaded components are zinc-plated.

What is the packaging specification?

One unit is packed per 60.24 × 6.69 × 7.48-inch / 153 × 17 × 19 cm carton.

What is the minimum order quantity?

The MOQ is 200 pieces. Buyers should request a current wholesale quotation before ordering.

Are warranty and certification documents included?

Warranty and certification information is not stated in the source specification. Confirm applicable documents before publishing or ordering.
