2000 lbs Engine Load Leveler with Handle and 315mm Working Range

The TPH06-1110H 2000 lbs engine load leveler is designed for controlled engine balancing and positioning when used with a compatible, correctly rated engine crane or lifting system. Its handle-operated adjustment mechanism and 12.4 in / 315 mm working range help operators change the engine angle during removal or installation. Explore our https://altertool.com/engine-leveler/ category for related engine-handling equipment.

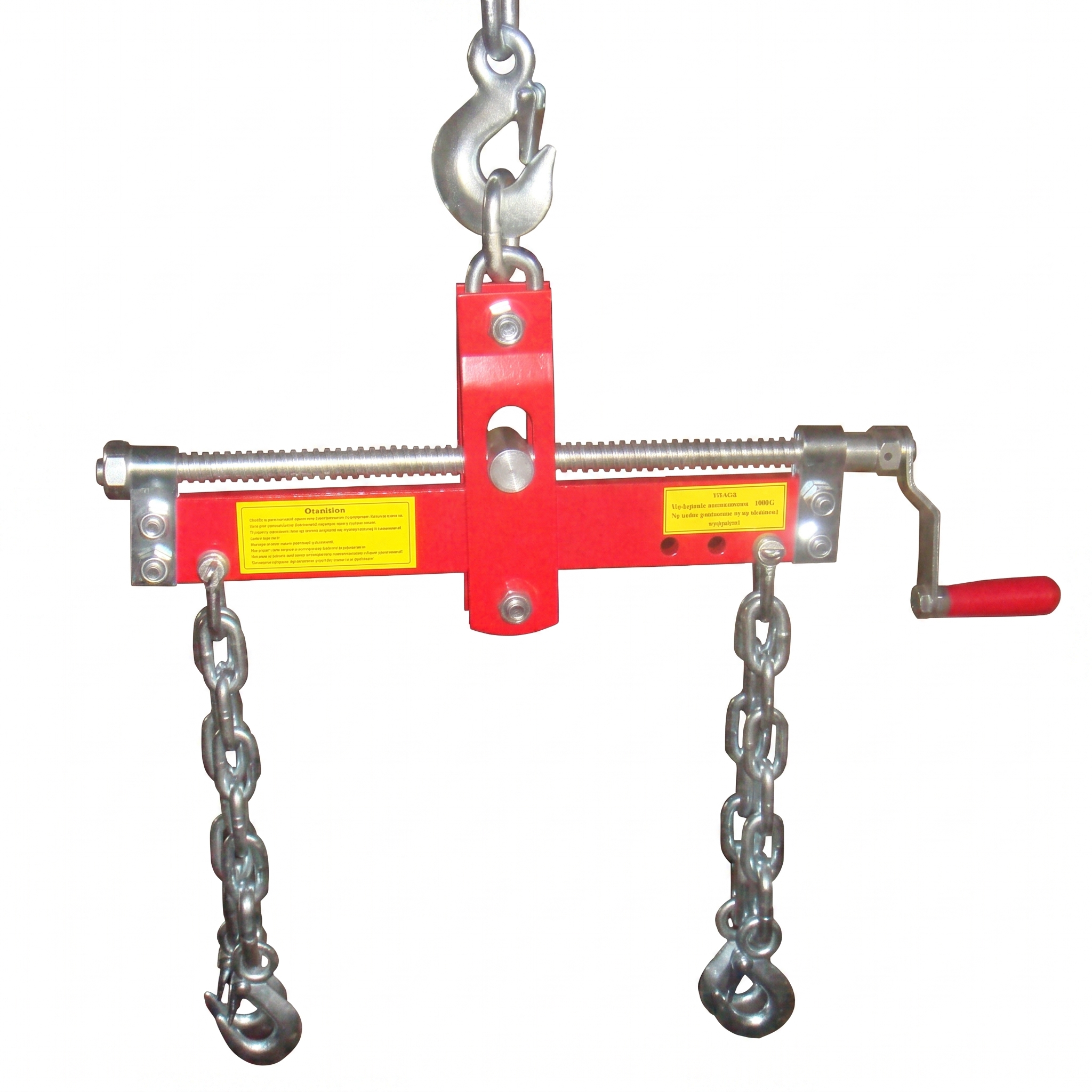

[Main product image]

TPH06-1110H 2000 lbs Engine Load Leveler Features

The supplied record identifies this product as a 2000 lbs load leveler. A separate factory note lists a maximum capacity of 1000 kg / 2,205 lb. Because these figures are not identical, follow the capacity label fitted to the finished product as the controlling safe-use reference.

• Product designation: 2000 lbs / approximately 907 kg
• Factory-recorded maximum capacity: 1000 kg / 2,205 lb
• Handle-operated adjustment system
• Adjustable positions: 1-3, according to factory information
• Use only with a compatible and correctly rated lifting system

Handle-Operated Engine Angle Adjustment

The handle-operated screw mechanism helps change the balance point of a compatible suspended engine. This can support controlled engine positioning during suitable installation and removal tasks.

• Working range: 12.4 in / 315 mm
• Handle-operated adjustment
• Factory-recorded adjustment positions: 1-3
• Confirm engine attachment points and lifting balance before operation

[Handle and screw detail]

Q235 Steel Frame, Hook and Chain Assembly

The factory note states Q235 steel as the main material. Supplied product information also indicates a large hook, zinc-plated threaded-rod and chain components, plus 5 mm chain material; confirm the final finish and accessory configuration before ordering.

• Main material: Q235 steel, stated in factory information
• Large central hook: stated in factory information
• Factory note: zinc-plated threaded-rod and chain components
• Factory note: 5 mm A3 steel chain material
• Confirm final hardware specification before order confirmation

Specifications

Specification	Details
Model	TPH06-1110H
Product type	Engine Load Leveler with Handle
Product designation	2000 lbs / approximately 907 kg
Factory-recorded maximum capacity	1000 kg / 2,205 lb; verify final load label
Working range	12.4 in / 315 mm
Adjustment system	Handle-operated screw
Factory-recorded adjustment positions	1-3
Main material	Q235 steel, stated in factory information
Hook	Large hook, stated in factory information
Chain	5 mm A3 steel chain stated in factory information; confirm final finish
Net weight	6 kg / 13.2 lb
Gross weight	6.5 kg / 14.3 lb
Packing	1 piece / carton
Packing size	22.4 × 7.9 × 2.2 in / 57 × 20 × 5.5 cm
MOQ	200 pieces
20 ft container reference quantity	5,400 pieces; confirm before order
USD unit-price reference	US$15.18 / piece
CNY HQ reference	CNY 91 / piece, tax-inclusive and freight-exclusive
Certification	Not supplied; confirm destination-market requirements

Packing and Delivery

Each engine leveler is packed as one piece per carton.

• Packing: 1 piece / carton
• Net weight: 6 kg / 13.2 lb
• Gross weight: 6.5 kg / 14.3 lb
• Packing size: 22.4 × 7.9 × 2.2 in / 57 × 20 × 5.5 cm
• MOQ: 200 pieces
• Reference quantity: 5,400 pieces per 20 ft container
• Confirm carton marks, hook and chain configuration, lead time and export requirements before order confirmation

Why Choose This Engine Load Leveler?

• Engine-angle adjustment: Handle-operated screw supports controlled balancing.
• 315 mm working range: Provides a defined adjustment range for compatible engine-handling tasks.
• Q235 steel main frame: Material stated in factory information.
• Hook and chain assembly: Designed for compatible engine-lifting setups.
• Compact carton packing: One piece per carton for warehouse and shipment planning.
• Wholesale-ready supply: MOQ and reference loading quantity are available.

Safety Notes

The TPH06-1110H 2000 lbs engine load leveler must only be used with a compatible, correctly rated engine crane, hook, chains and attachment points.

• Follow the rated-load label installed on the finished leveler.
• The source’s 1000 kg figure must not replace the verified product rating without manufacturer confirmation.
• Inspect the hook, chains, threaded adjustment mechanism, crossbar and fasteners before use.
• Keep people clear of a suspended engine.
• Never work beneath a suspended engine or component.
• Confirm that all lifting attachment points are secure before raising or repositioning the load.

FAQ

What is the listed capacity?

The product is listed as a 2000 lbs engine load leveler. The supplied factory note separately records a 1000 kg maximum capacity. Use the finished product’s rated-load label as the final operating reference.

What is the working range?

The specified working range is 12.4 in / 315 mm.

Can the engine angle be adjusted?

Yes. The product uses a handle-operated screw adjustment system. The factory note records adjustment positions from 1 to 3.

Is this an engine crane?

No. This product is an engine load leveler. It must be used with a compatible and correctly rated engine crane or lifting system.

What is the main material?

The factory information states Q235 steel as the main material.

How is it packed?

Each unit is packed as one piece per carton, with dimensions of 57 × 20 × 5.5 cm / 22.4 × 7.9 × 2.2 in.

Request a Quote

Need a TPH06-1110H 2000 lbs engine load leveler for wholesale, distribution or engine-service requirements? Send your destination, quantity and packing requirements to receive a current quotation and configuration confirmation.
