1 Ton Hydraulic Engine Crane for Workshop Engine Handling

Built for engine removal, installation and positioning tasks, this 1 ton hydraulic engine crane combines a Q235 steel frame, adjustable boom positions and a hydraulic long ram lifting system. It is designed for automotive workshops, repair garages and maintenance operations that need controlled engine lifting within a practical shop footprint.

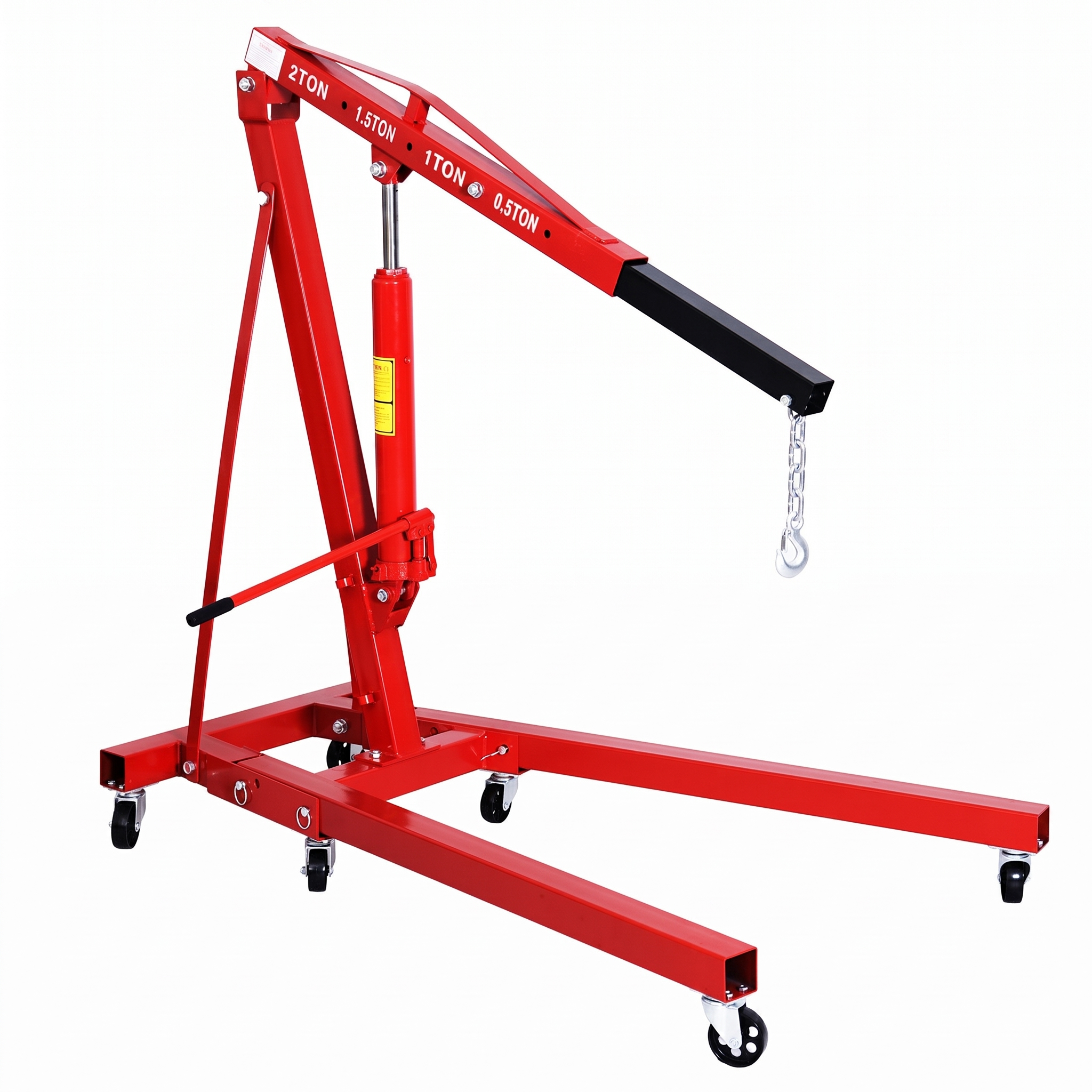

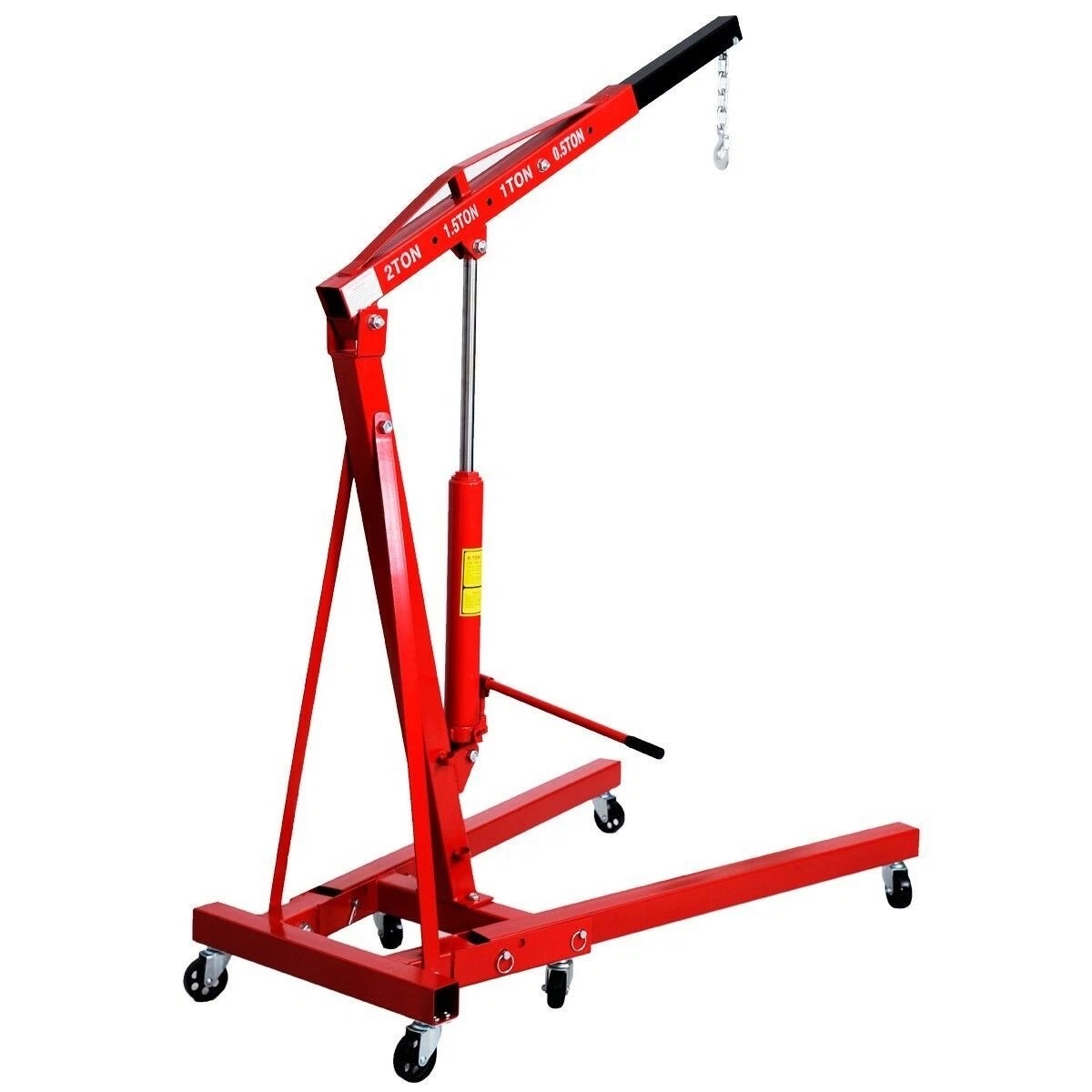

[Main product image]
Suggested image: clean 800 x 800 px white-background image showing the complete red engine crane, boom, hook, hydraulic ram and caster base.
Image alt text: Red 1 ton hydraulic engine crane with adjustable boom, hydraulic long ram jack and lifting hook

High Lift Range for Engine Service Work

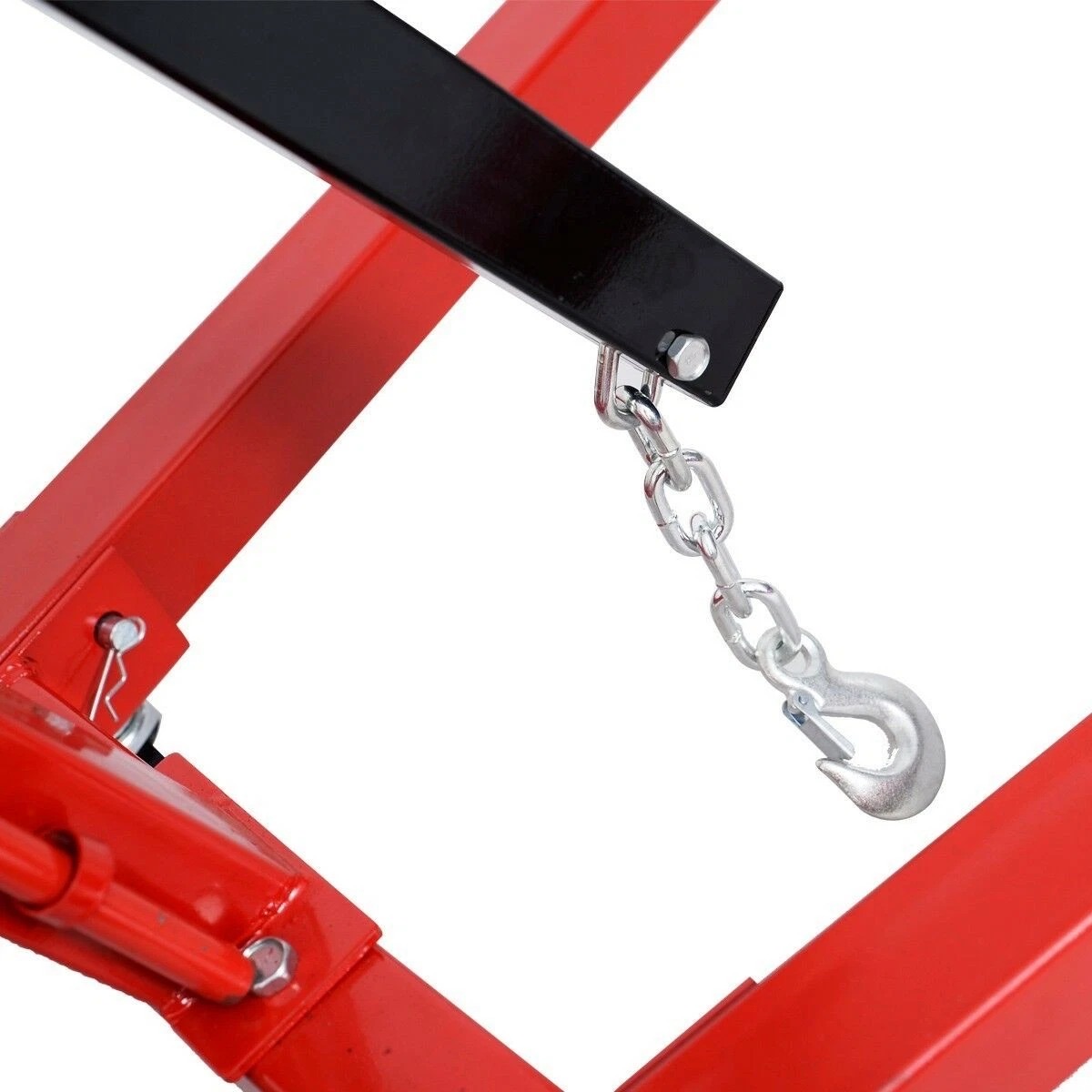

With a lifting range of up to 2200 mm / 86.6 in, the crane provides the vertical clearance required for common engine lifting and positioning jobs. The long boom and hook assembly support controlled connection to suitable lifting points on the engine or component.

• Max capacity: 1 ton / 2,205 lb
• Lifting range: 0-2200 mm / 0-86.6 in
• Boom length: 145 cm / 57.1 in
• Overall height: 140 cm / 55.1 in

Suggested image: dimension diagram showing overall height, boom length, base length, front width and rear-leg width. Do not add unverified load ratings for individual boom positions.
Image alt text: 1 ton hydraulic engine crane dimensions and lifting range diagram

4-Position Adjustable Boom

The boom can be set in four positions to help operators select a suitable reach for the lifting task and available workspace. Always follow the capacity label and operating instructions for the selected boom position; do not assume that the maximum 1 ton capacity applies at every extension position.

• Adjustable boom positions: 1-4
• Designed for controlled reach adjustment during engine handling
• Suitable for workshop layout and vehicle service requirements

[Boom adjustment detail]
Suggested image: close-up of the boom adjustment holes and locking pin, clearly showing positions 1-4.
Image alt text: Four-position adjustable boom on hydraulic engine crane

Q235 Steel Frame and Hydraulic Lifting System

The crane uses Q235 steel square tubing with a 2.0 mm wall thickness for its main structure. Its hydraulic lifting system uses an 8 ton hydraulic long ram jack with a 28 mm / 1.10 in pump piston rod diameter.

Important: The 8 ton marking refers to the hydraulic long ram jack specification. The maximum rated lifting capacity of the complete crane is 1 ton / 2,205 lb.

• Main material: Q235 steel
• Main frame: square tube structure
• Tube wall thickness: 2.0 mm / 0.08 in
• Hydraulic long ram jack: 8 ton
• Pump piston rod diameter: 28 mm / 1.10 in

[IMAGE 4 - Hydraulic ram and frame detail]
Suggested image: close-up image of the hydraulic long ram jack, 28 mm piston rod and Q235 square-tube frame.
Image alt text: Hydraulic long ram jack and Q235 steel frame detail of engine crane

Product Dimensions

Item	Metric	Imperial
Overall height	140 cm	55.1 in
Base length	144 cm	56.7 in
Front width	96 cm	37.8 in
Rear leg width	69 cm	27.2 in
Boom length	145 cm	57.1 in

Specifications

Specification	Details
Model	TDJDX-2110
Product type	Hydraulic Engine Crane / Shop Crane
Max capacity	1 ton / 2,205 lb
Lifting range	0-2200 mm / 0-86.6 in
Boom adjustment	4 positions
Hydraulic unit	8 ton hydraulic long ram jack
Pump piston rod diameter	28 mm / 1.10 in
Main material	Q235 steel
Main tube type	Square tube
Tube wall thickness	2.0 mm / 0.08 in
Net weight	53 kg / 116.8 lb
Gross weight	55 kg / 121.3 lb
Package	1 set / 2 cartons
Carton 1 size	128 x 26 x 17 cm / 50.4 x 10.2 x 6.7 in
Carton 2 size	73 x 54 x 9 cm / 28.7 x 21.3 x 3.5 in
20 ft container reference quantity	300 sets; confirm before order confirmation
CE/GS status	No CE/GS declaration supplied for this model

Packing and Delivery

Each crane is packed as one set in two cartons to support more manageable handling and transport.

• Packing configuration: 1 set / 2 cartons
• Total gross weight: 55 kg / 121.3 lb per set
• Total net weight: 53 kg / 116.8 lb per set
• Approximate combined carton volume: 0.092 m³ / 3.25 ft³
• Reference loading quantity: 300 sets per 20 ft container, subject to final loading verification

Suggested image: two exported cartons with carton marks, packing dimensions and protected product components.
Image alt text: Two-carton packaging for 1 ton hydraulic engine crane

Why Choose This 1 Ton Shop Crane?

• Clear rated capacity: Complete crane rated at 1 ton / 2,205 lb.
• Adjustable reach: Four boom positions help match reach to the service task.
• Hydraulic operation: Uses an 8 ton hydraulic long ram jack for lifting action.
• Structured steel frame: Q235 square-tube construction with 2.0 mm wall thickness.
• Workshop-ready size: 2200 mm / 86.6 in maximum lifting range with a 144 cm / 56.7 in base length.

Safety and Compliance Notes

• Do not exceed the 1 ton / 2,205 lb maximum rated capacity.
• Capacity may vary by boom position; follow the capacity label and operating instructions for the selected position.
• Use only on a firm, level surface.
• Keep people clear of suspended loads. Never work beneath a suspended engine or component.
• Inspect the hook, chain, hydraulic ram, pins and frame before use.
• No CE/GS declaration has been supplied for this model. Confirm destination-market compliance requirements before placing an order.

FAQ

What is the maximum lifting capacity of this engine crane?

The complete crane has a maximum rated lifting capacity of 1 ton / 2,205 lb.

What is the maximum lifting height?

The specified lifting range is 0-2200 mm / 0-86.6 in.

Why does the crane use an 8 ton hydraulic long ram jack if the crane is rated at 1 ton?

The 8 ton figure describes the hydraulic long ram jack specification. The complete crane must still be used only within its 1 ton / 2,205 lb rated capacity.

Can the boom be adjusted?

Yes. The boom has four adjustment positions. Select the appropriate position according to the operating instructions and applicable capacity label.

Is CE or GS certification included?

No CE/GS declaration is supplied for this model. Please confirm certification and compliance requirements for your target market before ordering.

What is included in the package?

The product is packed as one set in two cartons. Confirm the final delivery scope, accessories and carton marks with the supplier before placing an order.

Request a Quote

Need a 1 ton hydraulic engine crane for your workshop, wholesale program or distribution project? Send your destination, required quantity and delivery requirements to receive a current quotation, packing confirmation and lead-time details.
