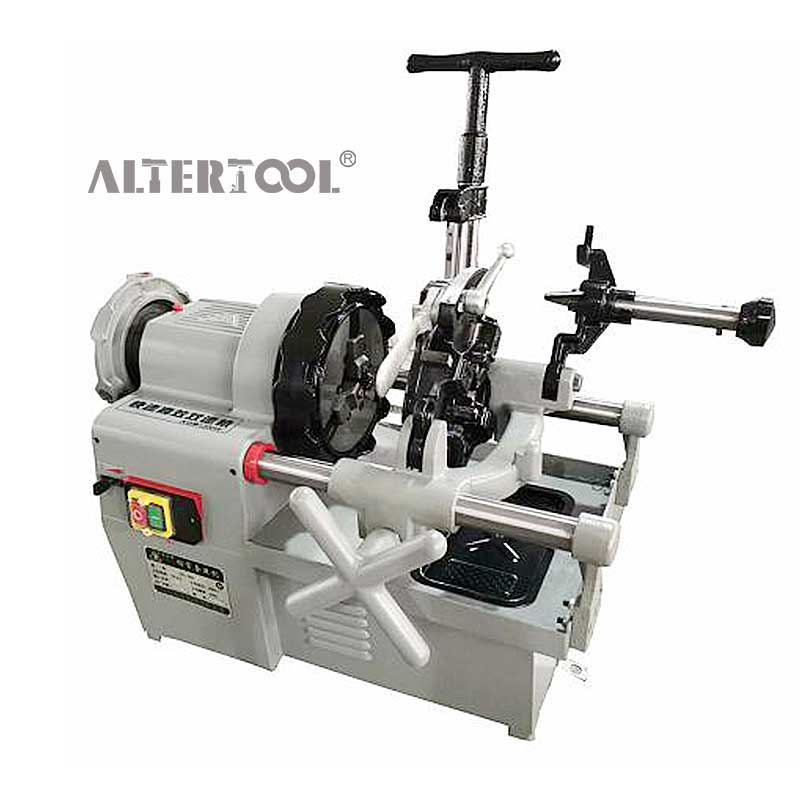

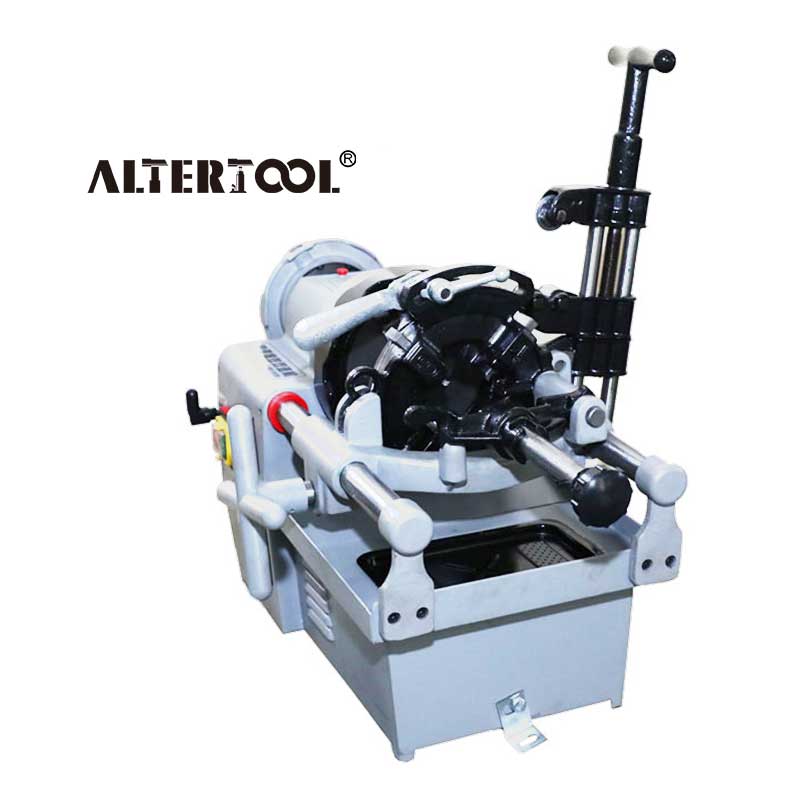

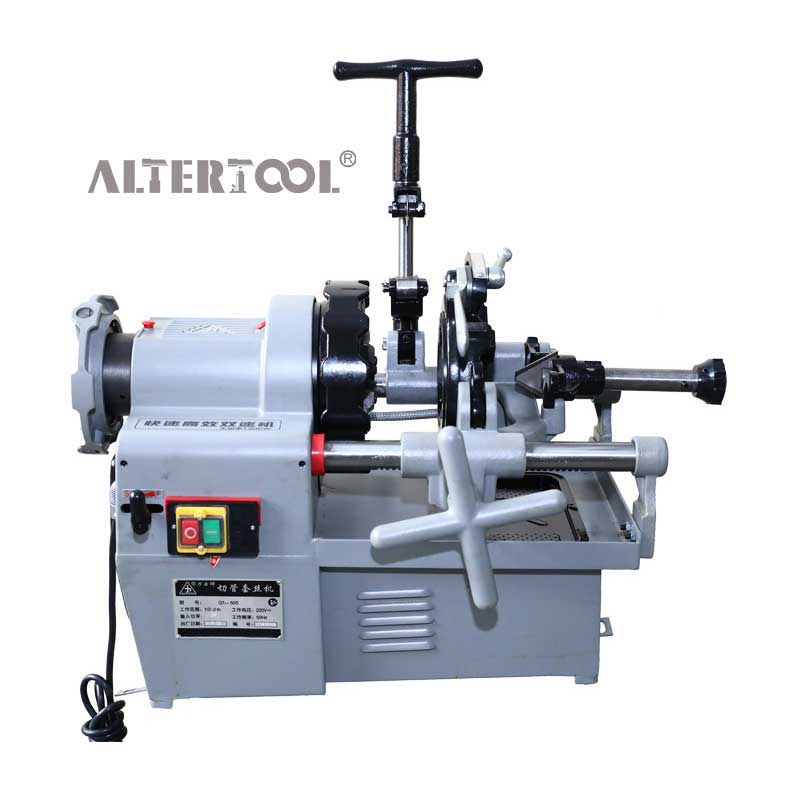

The TTS81-1420 is a motor-driven pipe threading machine for 1/2–2 inch pipe. It combines a 1.3 kW motor, a speed-change gearbox and a manually opened die head for workshop pipe-threading work.
Two Working Speeds
The machine provides spindle speeds of 27 and 48 rpm. The die head opens manually after the threading operation. The pipe chuck and rear support help position the workpiece during setup.
Specifications
Model
TTS81-1420
Pipe capacity
1/2–2 inches
Motor power
1.3 kW
Spindle speeds
27 / 48 rpm
Die-head opening
Manual
Net / gross weight
70 / 77 kg
Packing
One machine per plywood case
Case dimensions
70 × 50 × 58 cm
Configuration and Ordering
Specify the pipe material, pipe size, required thread standard and local power supply when requesting a quotation. Confirm the motor voltage and supplied dies for your order. Photos show the product and packing examples; the supplied configuration should be confirmed in the quotation.
Frequently Asked Questions
Is this a hand-powered machine?
No. It has a 1.3 kW motor. “Manual opening” describes the die-head operation.
What pipe sizes does it cover?
The stated pipe capacity is 1/2–2 inches. Confirm the required dies and thread standard before ordering.
How is the machine packed?

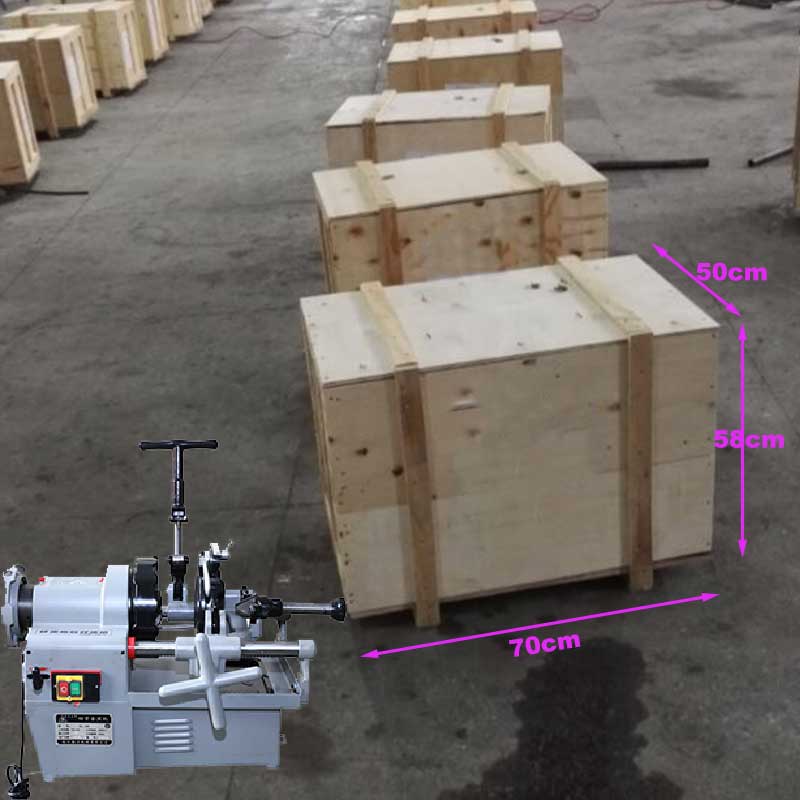

Each machine is packed in a plywood case measuring 70 × 50 × 58 cm.
Request a Quotation
Contact Altertool with your quantity, destination, pipe sizes and electrical requirements for the current product configuration and price.
