Mobile Single Post Car Lift TJS19‑12225ML | 2500‑2800KG Electrical Release

Key Attributes

Product Name	Mobile Single Post Lift, Electrical Release
Model No.	TJS19‑12225ML
Lifting Capacity	2500kg / 2800kg
Max Lifting Height	1850mm
Minimum Height	125mm
Motor Power	2.2kw
Power Supply	220V / 380V
Release Type	Electrical Release
Packing 1#	250*60*45CM, 385kgs (1pc)
Packing 2#	250*60*95CM, 775kgs (2pcs)
Packing 3#	250*60*145CM, 1160kgs (3pcs)

Want a flexible mobile single‑post lift to save workshop floor space?

• TJS19‑12225ML mobile single post lift with electrical release delivers 2500kg‑2800kg lifting capacity. Unlike fixed two‑post lifts, this single‑column unit can be moved around your workspace. Perfect for small repair shops, body shops, mobile service bays and multi‑purpose garages for passenger car maintenance work.

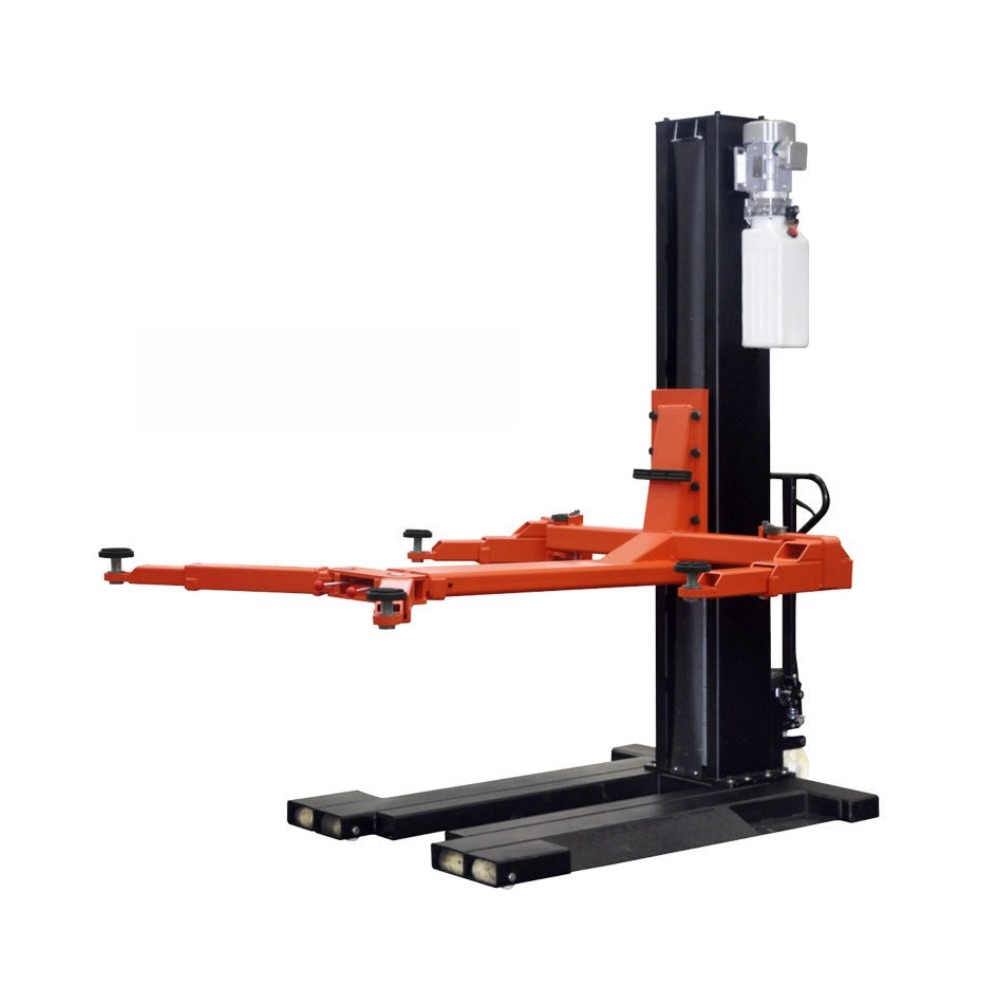

What makes mobile single‑post design different from traditional lifts?

• It adopts a single‑column main structure with movable base. You are not locked to one fixed work bay. When you do not need it, you can move it aside to free up floor area for other jobs. No permanent anchor bolt fixing is required in many installation scenarios, giving your garage greater layout flexibility.

Will it work for low‑chassis passenger vehicles?

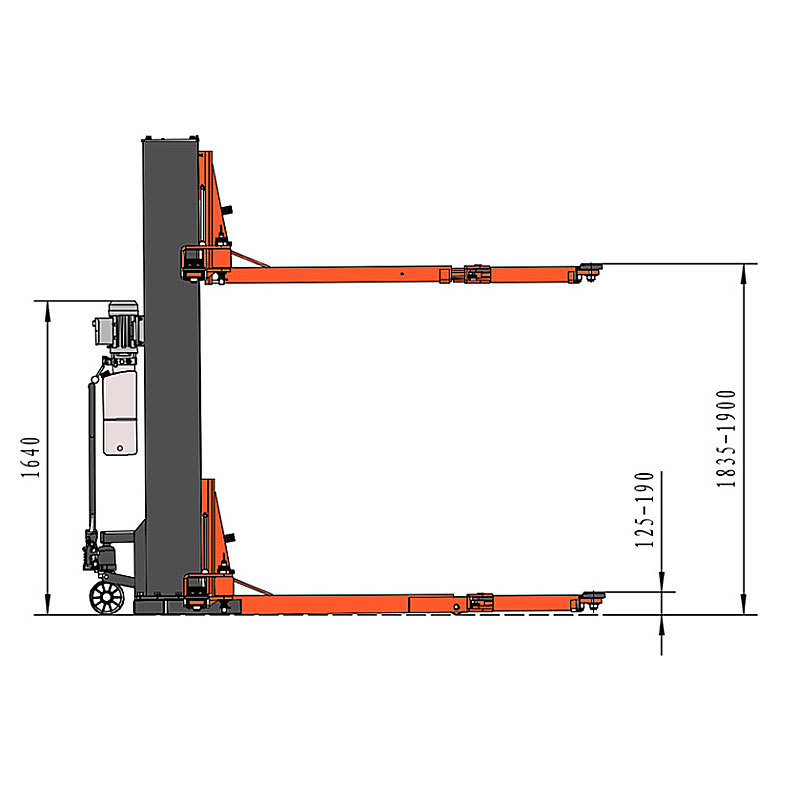

• The minimum pickup height is 125mm, compatible with most ordinary sedans and family cars. Maximum lifting height reaches 1850mm, offering plenty of under‑car clearance. Mechanics can stand comfortably to finish brake repairs, oil changes, exhaust replacement and chassis inspection.

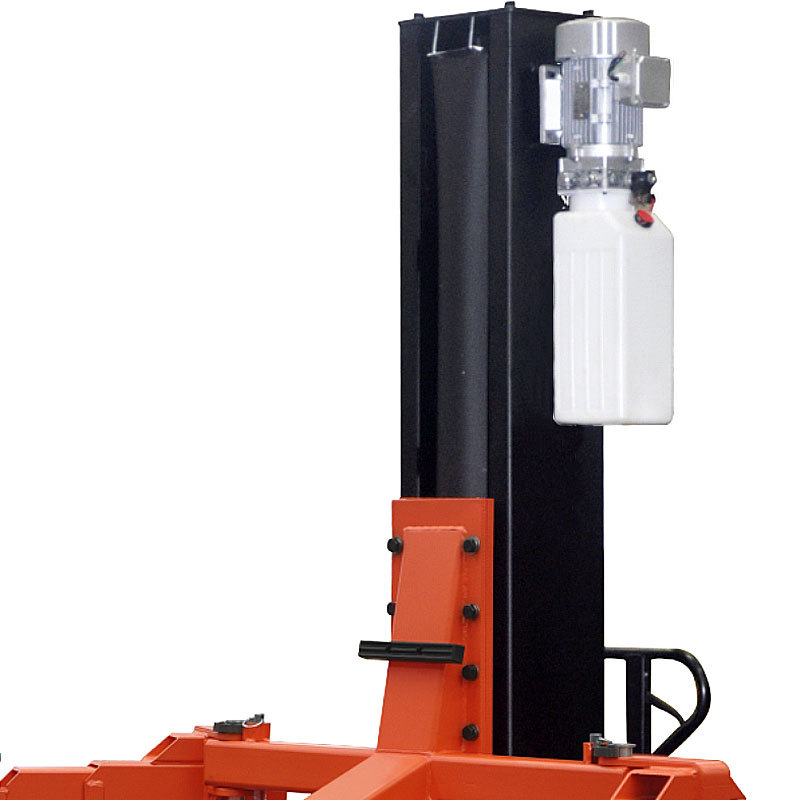

What performance can you get from the 2.2kw motor system?

• Equipped with reliable 2.2kw power unit. It provides steady lifting performance under rated load. The hydraulic system runs smoothly during daily repeated lifting cycles. It keeps stable output without frequent overheating, supporting continuous daily repair workload for small‑to‑medium garages.

How convenient is the electrical release function in daily operation?

• Comes with electrical release mechanism. You do not need manual pulling to disengage safety locks. Just press the button to complete lock release when lowering vehicles. It reduces physical labor for operators, improves working speed and lowers the risk of manual operation mistakes.

Can this lift match different local workshop power supplies?

• Supports both 220V and 380V power options. You can select the voltage matching your existing workshop power configuration. No large‑scale circuit renovation is needed, helping you cut extra setup costs for your business.

What should you pay attention to for packaging and receiving shipment?

• This product is shipped in 3 separate packages with different dimensions and weights. Upon goods arrival, please inspect all three packages and check parts completeness. Multiple‑package shipping helps avoid oversized cargo restrictions during international sea transportation.

Which types of workshops benefit most from this single‑post lift?

• Excellent fit for small auto repair shops, car beauty workshops, collision repair shops, used‑car appraisal centers and training schools. If your working space is limited and you need to frequently rearrange work areas, this mobile single‑post lift will be a very practical equipment choice.

What safety precautions must operators follow strictly?

• Operate on flat, solid concrete ground. Never exceed the maximum rated 2800kg lifting weight. Check hydraulic condition, electrical release function and safety locks before starting work. Confirm safety locks are engaged before staff go under lifted vehicles. Operators must read the full user manual before use.

Is TJS19‑12225ML a worthwhile investment for space‑limited garages?

• Mobile flexible layout, electrical release, 2500‑2800kg load capacity and dual‑voltage compatibility are its major highlights. It solves the pain point of fixed‑position large lifting equipment for compact workshops. If you want space‑saving, movable car lifting equipment, this single‑post lift is a solid practical solution.
