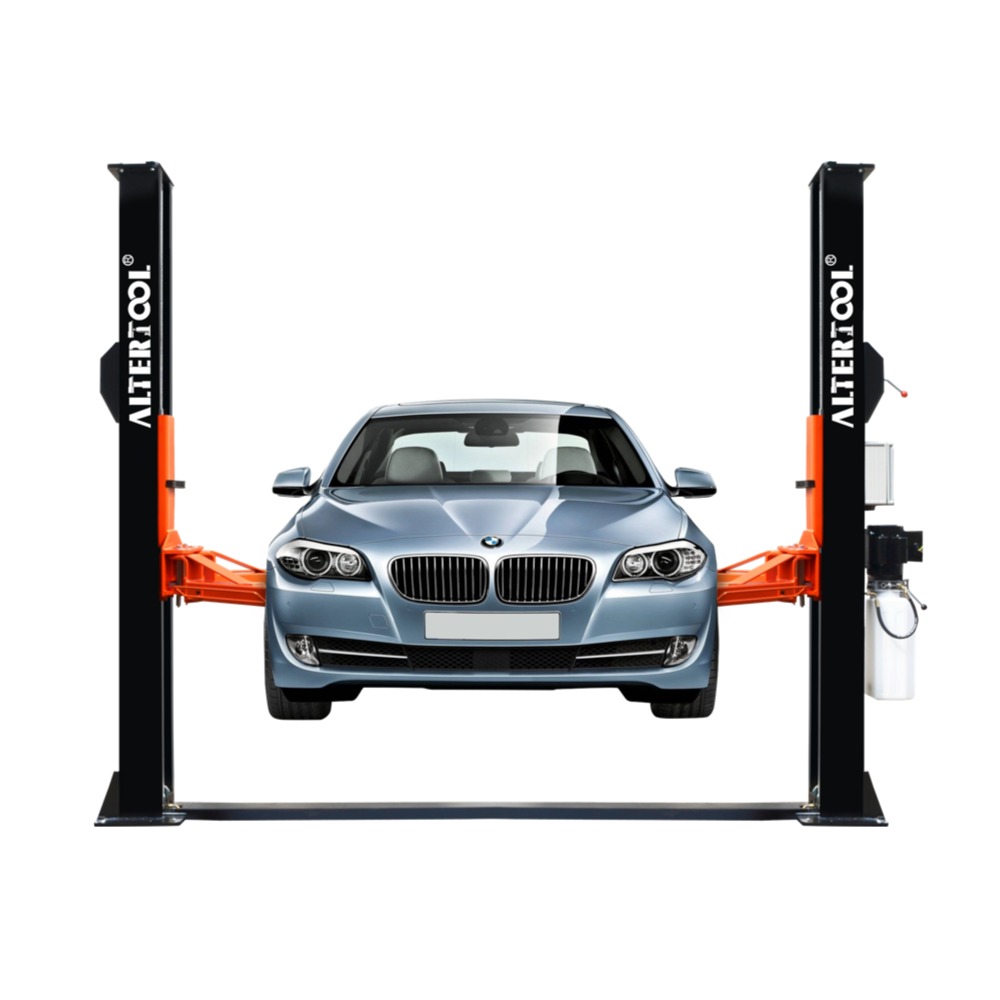

4000KG Electro‑Hydraulic 2 Post Car Lift HPX‑TF340B | Floor Plate Type

Key Attributes

Product Name	Electro‑Hydraulic 2 Post Lift, Floor Plate Type
Model No.	HPX‑TF340B (HB‑X‑DC‑4.0B)
Lifting Capacity	4000kg
Minimum Height	90mm
Max Lifting Height	1930‑1965mm
Through Width	2500mm
Column Height	2824mm
Rising Speed	45S
Descending Speed	40S‑50S adjustable
Power Supply	380V / 220V
Motor Power	2.2kw
System Pressure	19MPA
Lock Type	Manual single side lock release



Looking for a heavy‑duty two‑post lift for your auto repair shop?

• This electro‑hydraulic 2‑post floor plate lift delivers solid 4000 kg lifting capacity. It is built for professional repair workshops, body shops and service centers. It can lift most sedans, SUVs and light commercial vehicles, supporting your daily tire service, oil change, brake and chassis overhaul work.

Why choose floor‑plate type 2‑post car lift?

• The floor‑plate design connects two posts with base plate, no need for deep underground foundation digging. Installation becomes simpler and faster. The 2500 mm through width leaves enough space for vehicle drive‑in, convenient for cars with wider wheel track to enter and exit smoothly.

Are you concerned about lifting height & ground entry clearance?

• Minimum height reaches 90 mm, compatible for vehicles with low chassis. Max lifting height ranges 1930‑1965 mm, offering ample working space underneath vehicles. You can comfortably stand and perform all kinds of under‑car maintenance jobs without cramped posture.

How efficient is its hydraulic lifting performance?

• Upward lifting completes within 45 seconds. Descending speed is adjustable between 40‑50 seconds. 2.2 kw motor and 19 MPA stable hydraulic system guarantee smooth lifting and lowering. Consistent power output avoids jitter during operation and improves your overall workshop working efficiency.

What about the safety locking mechanism?

• Equipped with manual single‑side lock release system. Multiple safety lock positions along columns will engage automatically when lifting. You can release locks manually when you need to lower vehicles. This mechanical lock provides reliable protection, preventing accidental drop during your under‑vehicle repair work.

Can this lift adapt to different local power conditions?

• Supports both 220V and 380V power supply options. You can select suitable power version according to your workshop power configuration. No need for large‑scale circuit reconstruction, which greatly lowers your site transformation cost.

Will column height fit your workshop ceiling?

• Column height is 2824 mm. Before purchase, please measure your workshop ceiling height to confirm installation space. This dimension fits most standard auto repair shop premises, it is essential to check space before ordering to avoid installation problems.

Which business scenarios fit this two‑post lift best?

• Perfect for professional auto repair shops, car care centers, used‑car inspection workshops, vocational school auto training rooms. If you run a vehicle‑service business and need stable, high‑capacity two‑post lifting equipment, this unit is a core workshop device for daily high‑frequency usage.

What key operating reminders you need to know?

• Must install on solid flat concrete ground. Do not exceed rated 4000 kg lifting load. Check locks, hydraulic oil and cables before daily startup. Confirm safety locks are fully engaged before staff go under lifted vehicles. Operators should read complete user manual and receive basic operation training.

Is HPX‑TF340B worth your workshop investment?

• It balances heavy load‑bearing, stable hydraulic performance and flexible power‑supply choice. Floor‑plate structure reduces installation difficulty. Reliable mechanical locking improves workplace safety. If you are searching for cost‑effective professional 2‑post electro‑hydraulic car lift, this model will be a solid long‑term investment for your garage business.
