8 Ton Double Pump Long Ram Jack, 650-1130mm Lift Range

The TYBHQ-1308D 8 ton double pump long ram jack is designed for compatible workshop equipment, shop presses, engine cranes and other correctly rated lifting setups. It provides a 25.6-44.5 in / 650-1130 mm height range with a double-pump configuration for controlled hydraulic operation. Explore our https://altertool.com/long-ram-jack/ category for related hydraulic components.

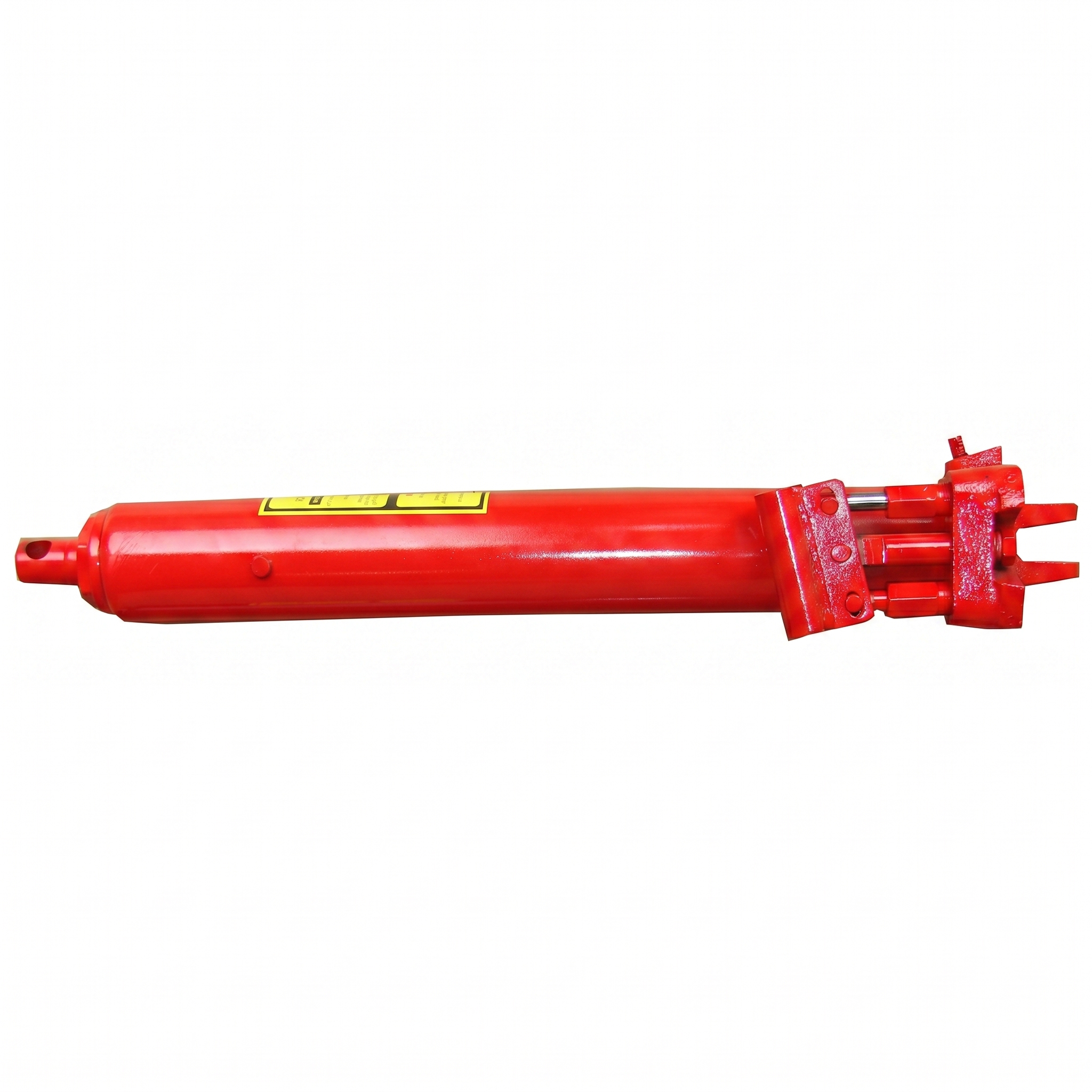

[Main product image]

TYBHQ-1308D 8 Ton Double Pump Long Ram Jack Features

This model is identified as an 8 ton long ram jack with a double-pump configuration. The finished product’s capacity label and operating instructions must be the controlling reference for its final installation and safe use.

• Product capacity: 8 ton
• Hydraulic configuration: double pump
• Minimum height: 25.6 in / 650 mm
• Maximum height: 44.5 in / 1130 mm
• Suitable only for compatible, correctly rated equipment

Double Pump Hydraulic Configuration

The double-pump design is specified in the factory record. Confirm final mounting dimensions, hydraulic-fluid requirements and operating compatibility with the finished equipment before order confirmation.

• Double-pump configuration
• Controlled hydraulic lifting operation
• Confirm equipment compatibility before installation
• Inspect the ram, seals, mounting points and hydraulic connections before use

[Pump and piston detail]

Piston Rod and Outer Sleeve Dimensions

The supplied record lists a 33 mm / 1.30 in piston rod diameter and an 80 mm / 3.15 in outer sleeve diameter. It also records an 11 mm / 0.43 in small pump body diameter; confirm the exact component naming and installation dimensions before purchasing.

• Piston rod diameter: 1.30 in / 33 mm
• Outer sleeve diameter: 3.15 in / 80 mm
• Factory-recorded small pump body diameter: 0.43 in / 11 mm
• Confirm replacement compatibility before order

Specifications

Specification	Details
Model	TYBHQ-1308D
Product type	Double Pump Long Ram Jack
Capacity	8 ton
Minimum height	25.6 in / 650 mm
Maximum height	44.5 in / 1130 mm
Height range	18.9 in / 480 mm
Hydraulic configuration	Double pump
Piston rod diameter	1.30 in / 33 mm
Outer sleeve diameter	3.15 in / 80 mm
Small pump body diameter	0.43 in / 11 mm; confirm part naming
Net weight	12.5 kg / 27.6 lb
Gross weight	13 kg / 28.7 lb
Packing size	26.8 × 5.5 × 6.3 in / 68 × 14 × 16 cm
20 ft container reference quantity	1,650 pieces; confirm before order
Custom color/packaging MOQ	150 pieces
Non-galvanized reference price	CNY 159 / piece, tax-inclusive
Galvanized-finish reference	CNY 10 additional per piece
USD source reference	US$25.10526316 / piece
Certification	Not supplied; confirm destination-market requirements

Packing and Delivery

The specified packing size is 26.8 × 5.5 × 6.3 in / 68 × 14 × 16 cm.

• Net weight: 12.5 kg / 27.6 lb
• Gross weight: 13 kg / 28.7 lb
• Packing size: 26.8 × 5.5 × 6.3 in / 68 × 14 × 16 cm
• Reference quantity: 1,650 pieces per 20 ft container
• Custom color or packing MOQ: 150 pieces
• Confirm final packing quantity, finish, shipping marks and lead time before order confirmation

[IMAGE 5 - Packaging image]

Why Choose This 8 Ton Long Ram Jack?

• Double-pump configuration: Specified for controlled hydraulic operation.
• Long height range: 650-1130 mm / 25.6-44.5 in.
• Defined dimensional data: Piston rod and outer sleeve diameters are provided for compatibility checks.
• Custom finish option: Non-galvanized reference price, with an optional galvanized finish.
• Custom packaging support: Available from 150 pieces, subject to final confirmation.
• Compact packing size: Supports wholesale shipping and storage planning.

Safety Notes

The TYBHQ-1308D 8 ton double pump long ram jack must be used only within its verified rated capacity and in a compatible, securely installed lifting system.

• Do not exceed the rated capacity marked on the finished jack.
• Use on a firm, stable mounting arrangement.
• Inspect the piston rod, seals, pump, release mechanism and mounting points before use.
• Secure or block the load immediately after lifting; never work beneath a load supported only by a hydraulic jack.
• Do not exceed the indicated travel limit.

FAQ

What is the capacity of this long ram jack?

The supplied product record lists an 8 ton capacity. Follow the finished product’s capacity label and operating instructions for final use.

What is the height range?

The minimum height is 650 mm / 25.6 in, and the maximum height is 1130 mm / 44.5 in.

Does it use a double pump?

Yes. The factory information specifies a double-pump configuration.

What is the piston rod diameter?

The piston rod diameter is 33 mm / 1.30 in.

Is a galvanized version available?

The source record lists the CNY 159 price for the non-galvanized version. A galvanized finish is stated as an additional CNY 10 per piece; confirm availability and final specification before ordering.

Can the product be ordered with custom color or packaging?

Yes. The source record states a custom color or packaging MOQ of 150 pieces.

Request a Quote

Need a TYBHQ-1308D 8 ton double pump long ram jack for compatible workshop equipment, wholesale or distribution requirements? Send your destination, quantity, finish and custom-packing requirements to receive a current quotation and configuration confirmation.
