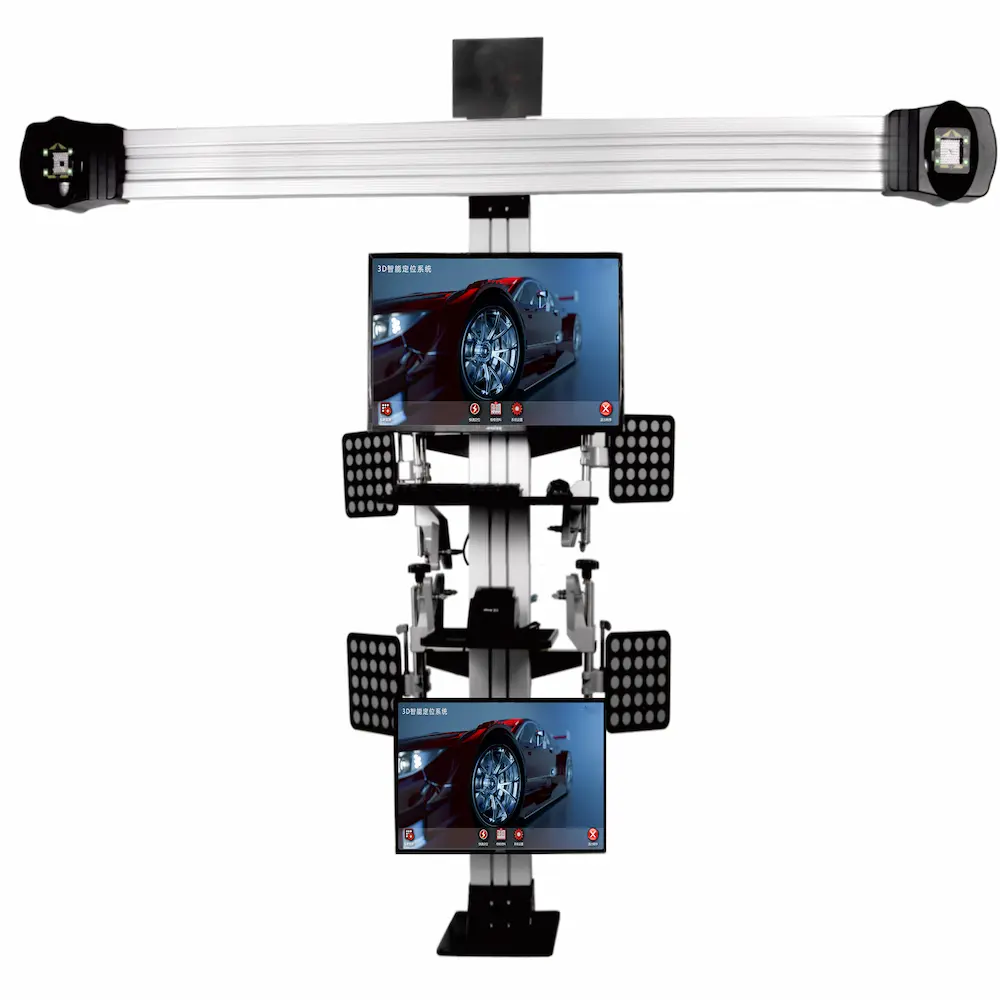

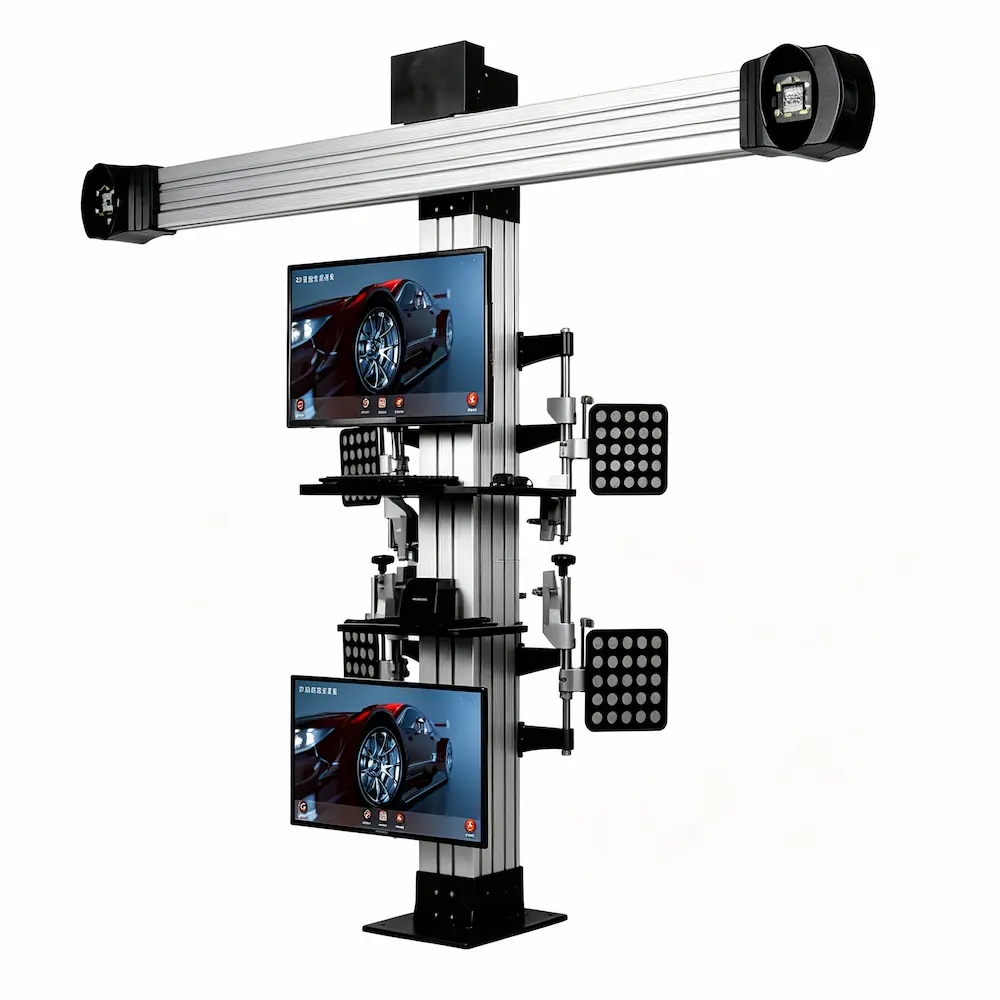

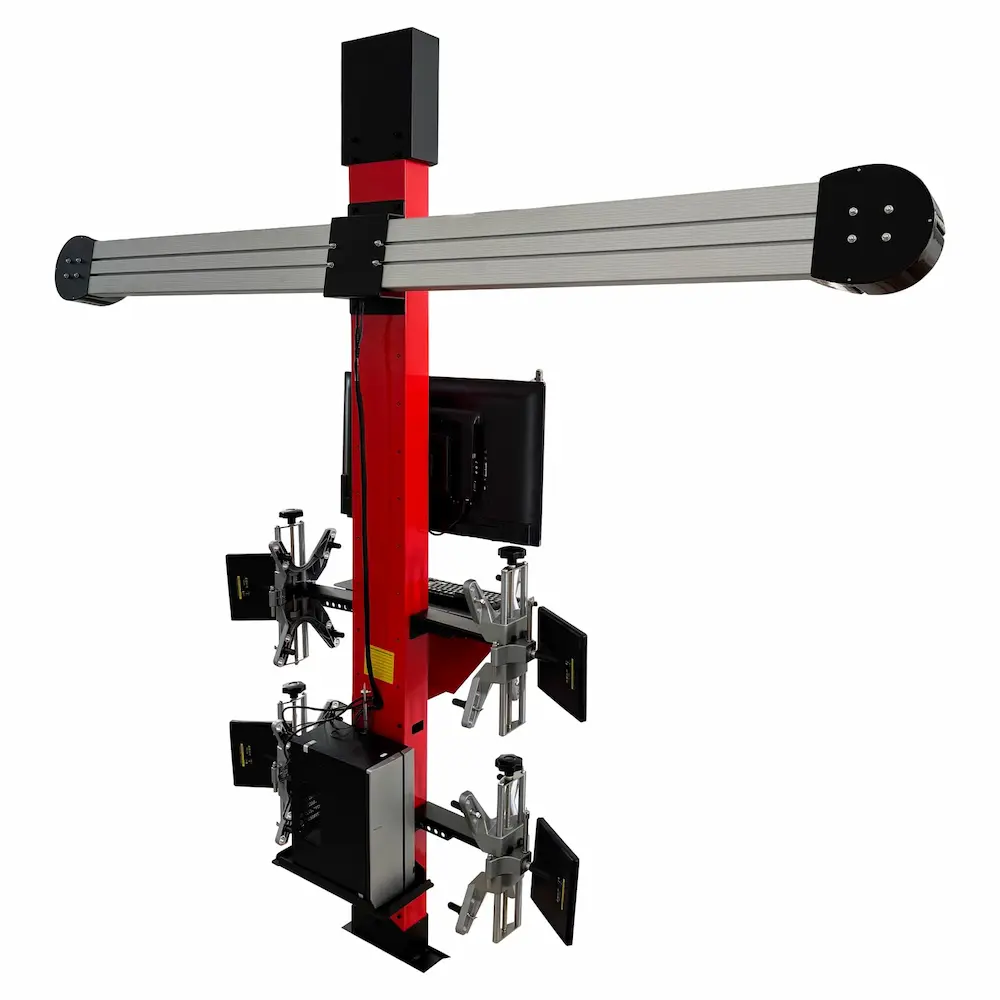

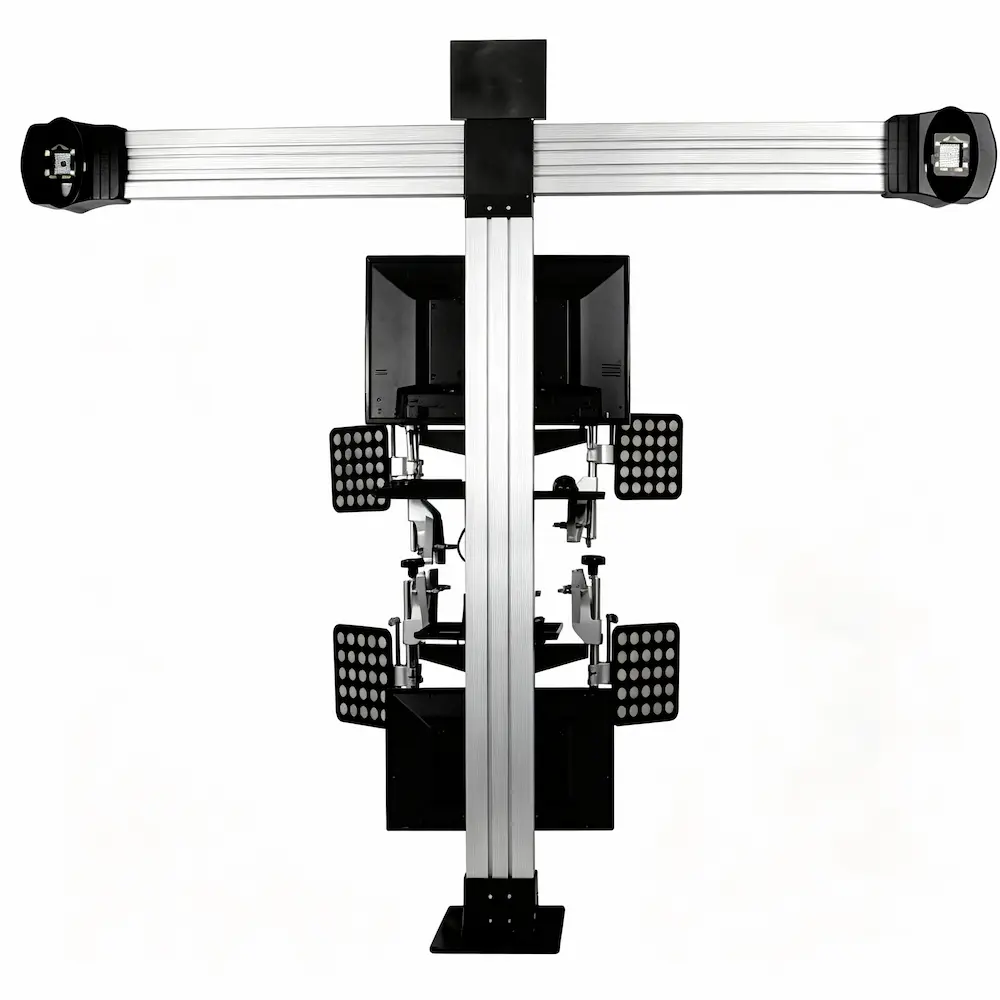

The TDJWJ-2301 3D wheel alignment machine is designed for automotive workshops, vehicle service centers and professional distributors. It supports measurement of key wheel alignment parameters, including camber, caster, king-pin, wheel toe, thrust angle, gauge and axle spread.
With a 3D measurement concept, the system helps service technicians evaluate vehicle alignment conditions in a structured and repeatable way. It is suitable for routine inspection, alignment diagnosis and workshop service operations for cars, SUVs and commercial vehicles, subject to the actual vehicle and system configuration.
Measurement Items and Accuracy
Camber: measurement accuracy ±0.01°; measurement range ±8°
Caster: measurement accuracy ±0.03°; measurement range ±19°
King-pin: measurement accuracy ±0.02°; measurement range ±19°
Wheel toe: measurement accuracy ±0.01°; measurement range ±2°
Thrust angle: measurement accuracy ±0.02°; measurement range ±2°
Gauge: measurement accuracy ±0.64°; measurement range <265 mm
Spread of axles: measurement accuracy ±0.64°; measurement range <533 mm

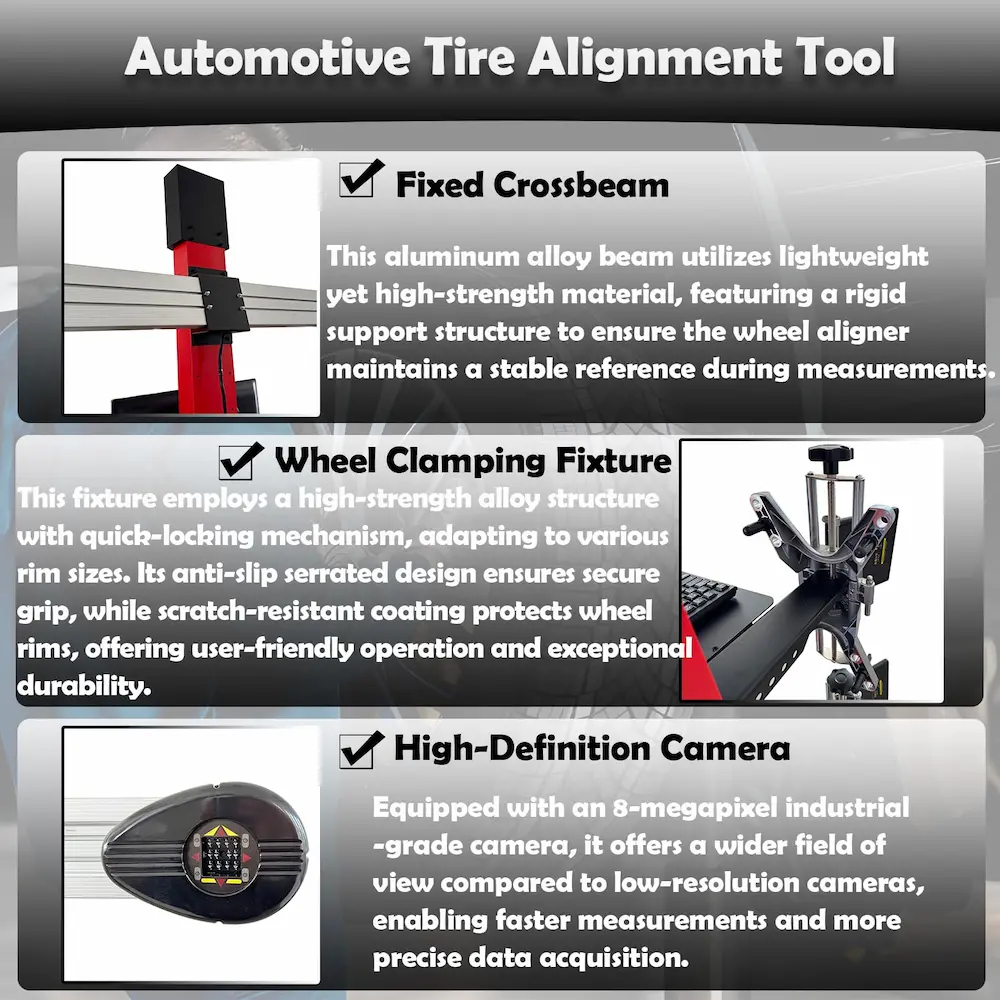

Included Components
[Camera]
Precision Alignment Camera
Captures wheel-position data for the 3D wheel alignment process and supports stable measurement operation.
Warranty: 3 Years
[LED Light Board]
LED Light Board
Provides a visual reference target for the camera system during alignment measurement.
Warranty: 3 Years
[Main Control Host]
Main Control Host
Connects the alignment hardware, software, and display for central system operation.
Warranty: 2 Years
[32-Inch Display]
32-Inch Display
Clearly presents alignment readings, measurement data, and operating guidance for technicians.
Warranty: 1 Year
[Wheel Clamps]
Adjustable Wheel Clamps
Securely mount the alignment targets to the wheels for reliable setup during alignment work.
Warranty: 1 Year
[Corner Plates]
Alignment Corner Plates
Provide a stable turning surface for front-wheel positioning during alignment procedures.
Warranty: 1 Year
[3 m USB Cable]
3 m USB Cable
Included for convenient connection between compatible system components.
Warranty: 1 Year
[HD Cable]
HD Cable
Connects the system to the display for clear transmission of operating information.
Warranty: 1 Year
[Power Adapter]
Power Adapter
Supplies power to compatible electronic components of the wheel alignment system.
Warranty: 1 Year
[Mouse & Keyboard]
Mouse & Keyboard Set
Included for system navigation, parameter input, and routine operation.
Warranty: 6 Months

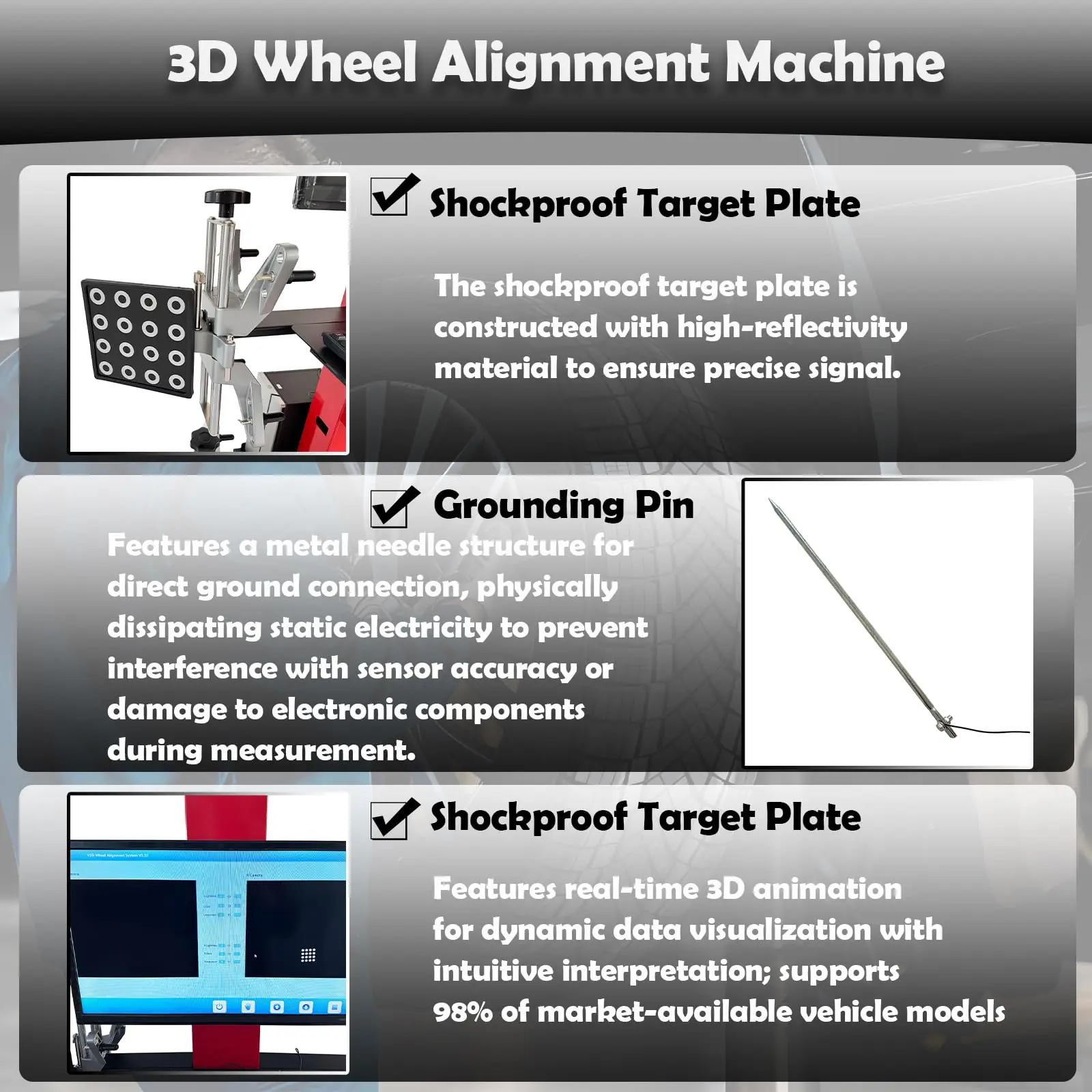

[Alignment Targets]
Alignment Targets
Work with the camera system as visual reference points for wheel alignment measurement.
Warranty: 3 Years — Non-Human Damage
Key Product Benefits
Multi-parameter alignment measurement
Measure camber, caster, king-pin, toe, thrust angle, gauge and axle spread in one alignment inspection workflow.
Workshop-oriented inspection
Designed for automotive service environments where technicians need clear measurement references for alignment diagnosis and adjustment.
Suitable for professional vehicle service
Applicable to workshops, repair centers, fleet maintenance operations and equipment distributors. Vehicle compatibility depends on the actual system configuration and installation conditions.
Data-led service decisions
Accurate measurement references can help technicians identify alignment deviations before adjustment and support more consistent service communication with vehicle owners.
