2200LB Hydraulic Strut Spring Compressor for Auto Repair, 102-160mm

2200LB Hydraulic Strut Spring Compressor for Auto Repair

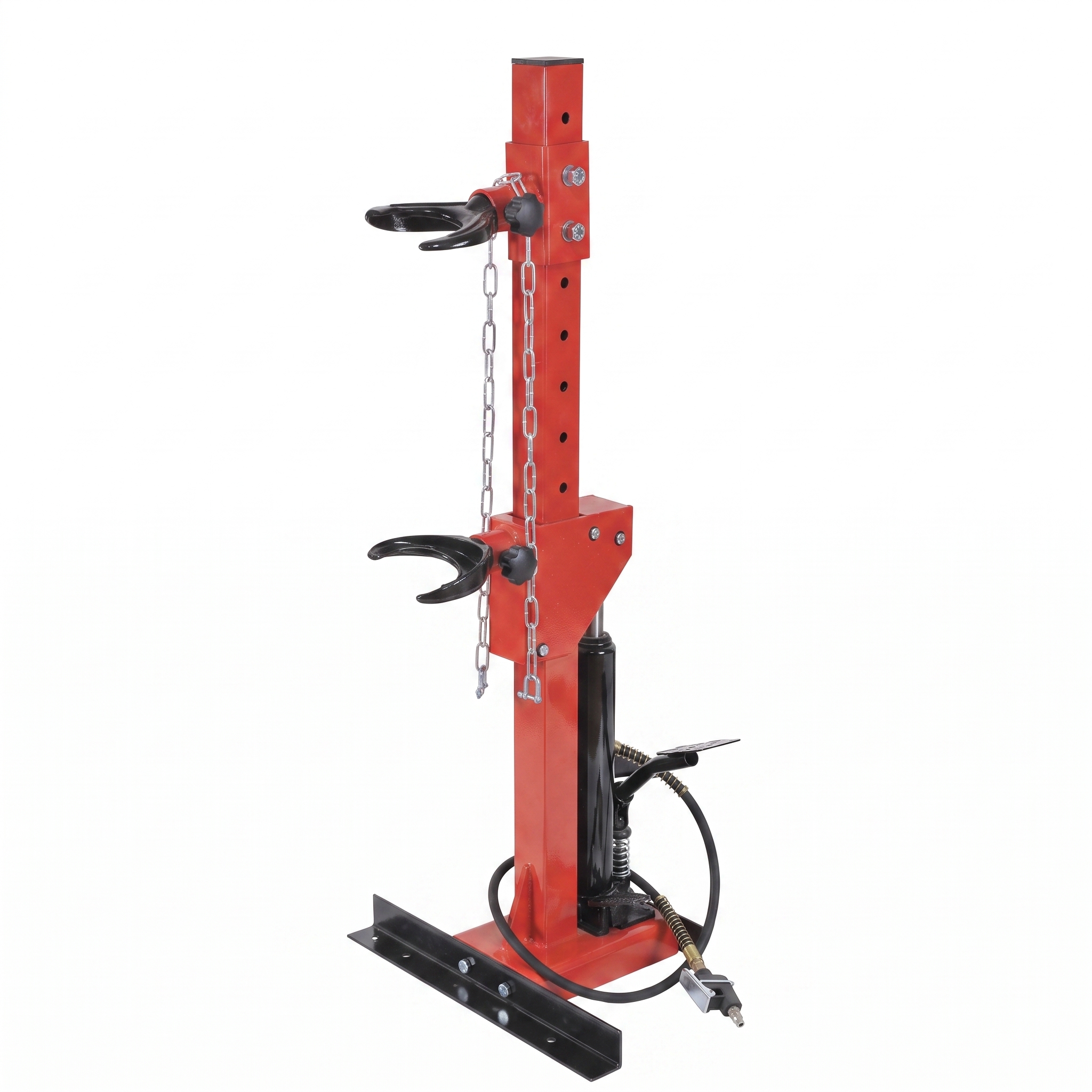

The 2200LB hydraulic strut spring compressor TTH12-2325A1 is designed for automotive strut-spring service. Its supplied specifications include a stated capacity of 2200 lb, a spring-size range of 102–160 mm and 320 mm of lower-yoke travel.

This model is intended for automotive repair applications where a hydraulic strut spring compressor with a defined spring-size range is required. Product compatibility and operating procedures should be checked against the applicable vehicle requirements and final operating manual before use.

2200LB Stated Capacity

The supplied product sheet specifies a capacity of 2200 lb, equivalent to approximately 998 kg.

This figure is presented as the manufacturer’s stated capacity. No additional working-load, safety-factor or certification claims have been added because those details were not included in the supplied product information.

102–160mm Spring-Size Range

The specified spring-size range is 102–160 mm, approximately 4.0–6.3 inches.

Users should confirm the dimensions and configuration of the relevant spring assembly before ordering. Vehicle-model compatibility is not stated in the supplied data and should therefore be confirmed separately.

320mm Lower-Yoke Travel

The TTH12-2325A1 provides 320 mm of lower-yoke travel, approximately 12.6 inches.

This measurement is identified specifically as lower-yoke travel. It should not be described as compression stroke, ram stroke or maximum working height unless those specifications are separately confirmed.

Verified Product Specifications

Specification	Product Data
Model	TTH12-2325A1
Product type	Hydraulic strut spring compressor
Stated capacity	2200 lb / approximately 998 kg
Spring-size range	102–160 mm / approximately 4.0–6.3 in
Lower-yoke travel	320 mm / approximately 12.6 in
Packing quantity	1 piece per carton
Carton size	118 × 28 × 18 cm / approximately 46.5 × 11.0 × 7.1 in
Gross weight	36 kg / approximately 79.4 lb
Net weight	32 kg / approximately 70.5 lb
Minimum order quantity	100 pieces

Packing and Bulk Ordering

Each TTH12-2325A1 spring compressor is packed individually, with one piece per carton.

The supplied carton dimensions are 118 × 28 × 18 cm, approximately 46.5 × 11.0 × 7.1 inches. Supplied gross weight is 36 kg, and net weight is 32 kg.

The stated minimum order quantity is 100 pieces. Contact AlterTool with the required quantity and delivery destination to request current quotation and shipping information.

Frequently Asked Questions

What is the stated capacity?

The supplied product sheet states a capacity of 2200 lb, approximately 998 kg.

What spring sizes does it accommodate?

The specified spring-size range is 102–160 mm, approximately 4.0–6.3 inches.

What is the lower-yoke travel?

The specified lower-yoke travel is 320 mm, approximately 12.6 inches.

Is 320mm the compression stroke?

No. The supplied information identifies 320 mm specifically as lower-yoke travel. A separate compression-stroke specification was not provided.

Is vehicle compatibility confirmed?

No vehicle compatibility list was supplied. Spring dimensions and application requirements should be confirmed before ordering.

How is the product packed?

One piece is packed per carton. The supplied carton size is 118 × 28 × 18 cm.

Request a Bulk Quotation

Contact AlterTool with the required order quantity, destination and application requirements to request current pricing and shipping information for the TTH12-2325A1 hydraulic strut spring compressor.
