20 Gallon Portable Air Operated Waste Oil Drain Tank
Model Number
Alazzura 350
Capacity
20 Gallon
Grade
Color
Red
Warranty
1Years
Packaging and delivery
Quantity(pc/box)
Single item
Single box size
100X53X41 cm
静态叠加

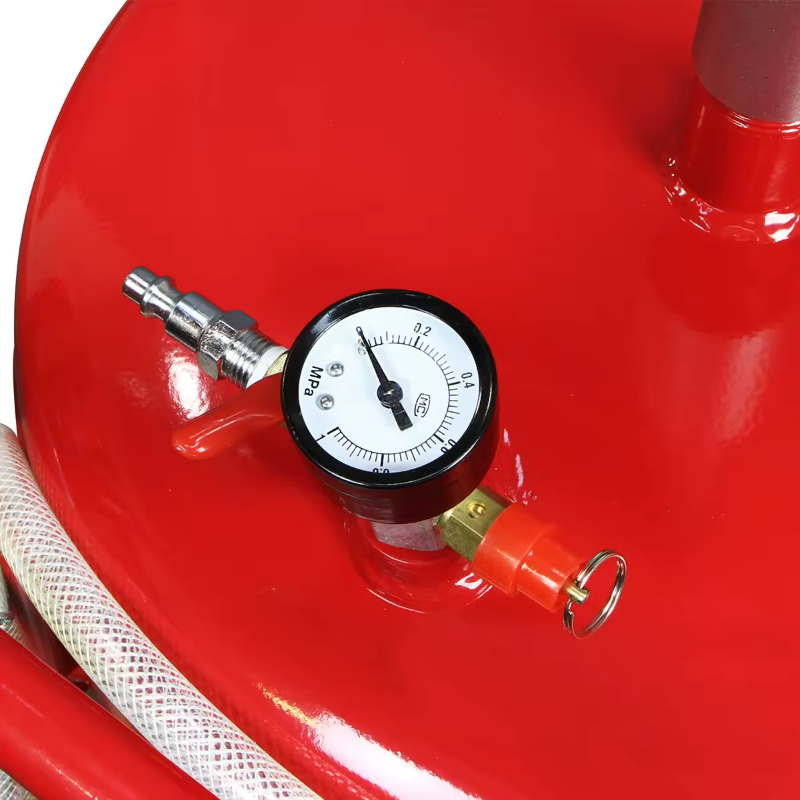

Vacuum Gauge

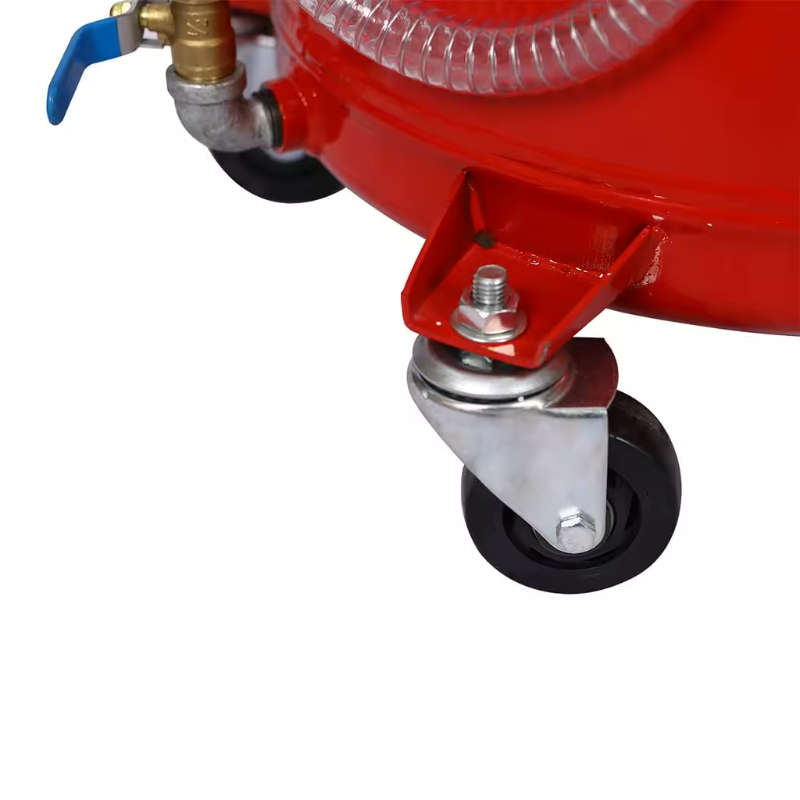

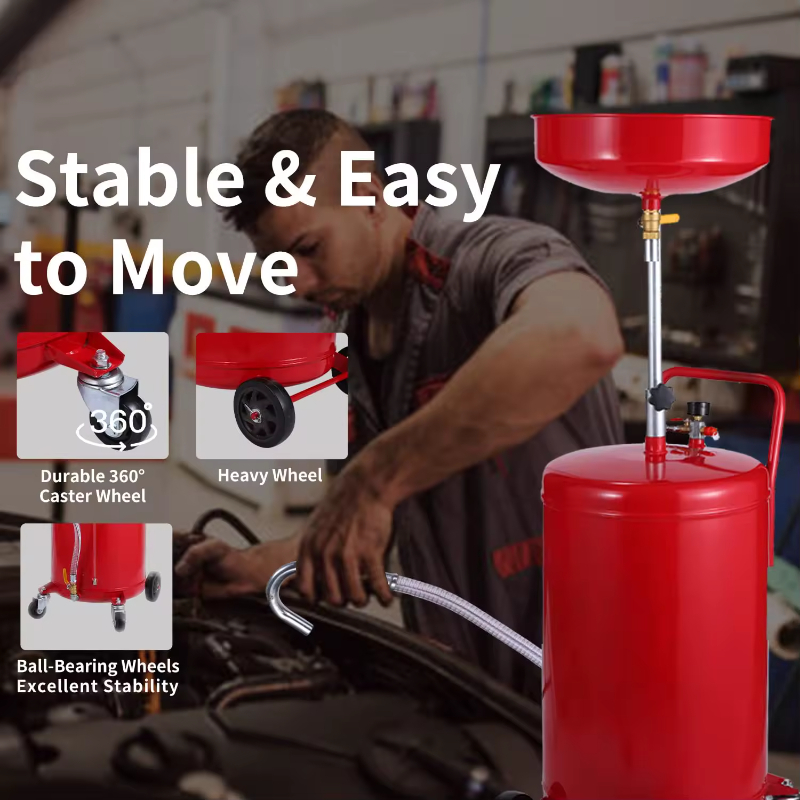

Stable Swivel Mobility

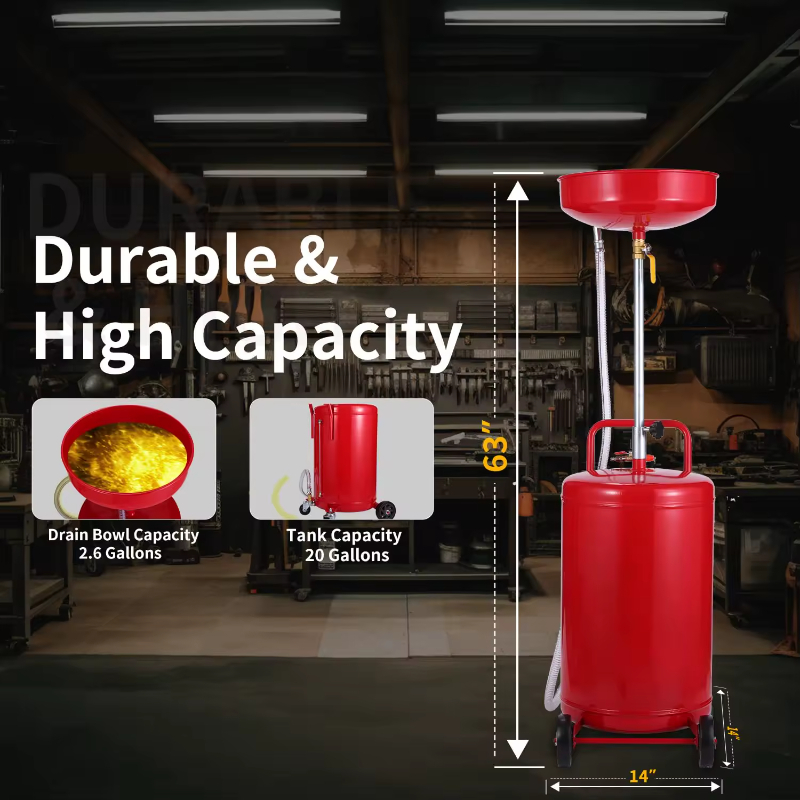

High-Capacity Oil Drainer

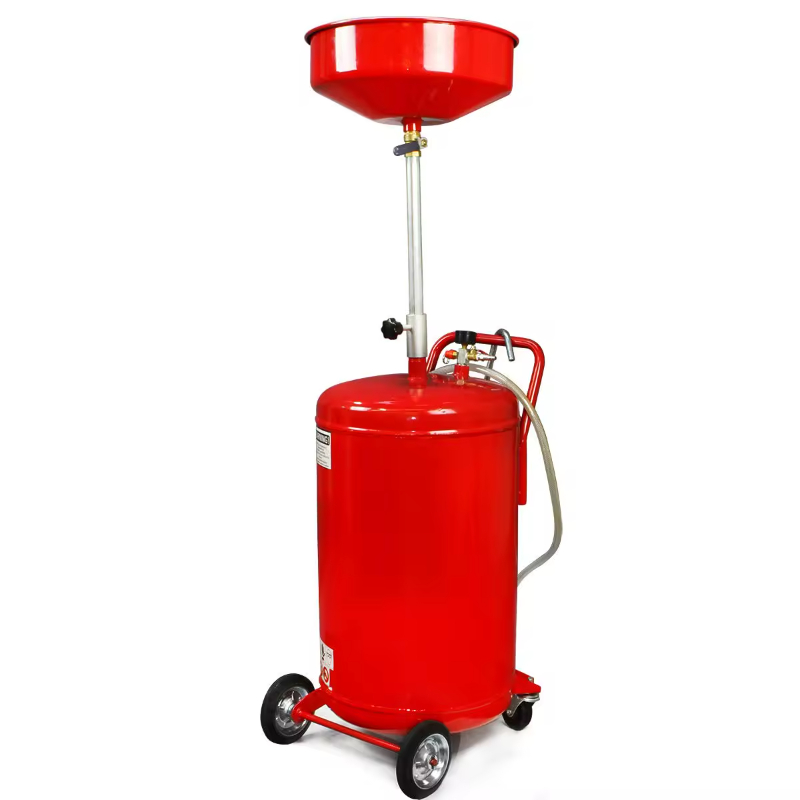

Portable Pneumatic Waste Oil Evacuator: Precision-Engineered 20 L Fluid Extraction System
From a mechanical engineering standpoint in automotive service equipment, this pneumatic waste oil evacuator stands out through its optimized vacuum-assisted design. It directly mitigates prevalent workshop challenges: labor-intensive manual pumping, fluid spillage during transfer, ergonomic strain from fixed-height drainers, and corrosion-related failures in harsh chemical environments. For B2B stakeholders—wholesalers, distributors, brand principals, cross-border e-commerce operators, and major retail chains—this unit combines chemical-resistant construction, rapid evacuation cycles, and logistical efficiency to support high-turnover resale and professional-grade aftermarket applications. The following sections detail its technical merits.
Comparison Table with Competitive Products
The ALTERTOOL TJY39-3242 pneumatic evacuator is benchmarked against common 20-gallon-class units (e.g., VEVOR 20 Gal air-operated models and Harbor Freight equivalents). Emphasis lies on its compact footprint, material resilience, and vacuum performance suited to medium-volume service bays.
Reliable supply chain integrity remains a primary concern for wholesalers and distributors. ALTERTOOL delivers direct-from-factory control from Zhejiang, China, eliminating intermediary variability and ensuring consistent batch quality. We maintain a documented 100% on-time delivery record and sub-4-hour inquiry response, minimizing procurement risks and inventory gaps.
Furthermore, integrated one-stop tooling sourcing enables consolidated shipments, reducing freight costs for cross-border platforms. Proximity to Shanghai/Ningbo ports accelerates export cycles. With CE/EU compliance across the lineup and a proven 1-year defect warranty, brands and large retailers secure regulatory alignment and end-user confidence. Our engineering-focused R&D continuously refines features like vacuum efficiency and caster stability, delivering measurable uptime gains.
Technical Specifications Table
Engineered for controlled fluid extraction under standard workshop pneumatics:
These parameters support rapid, low-spill evacuation while preserving component longevity.
Wholesale Policy & Pricing Structure
Policies prioritize scalability and margin protection for B2B volumes:
Order Quantity (Units)
Unit Price (USD, Approximate)
Key Terms & Incentives
50–99
$78.23
Standard volume discount; expedited samples for qualified accounts
100+
$69.21
Enhanced discount; OEM customization; priority production scheduling
Minimum Order Quantity
Negotiable (low-entry flexible)
Tool bundle options; flexible T/T or L/C terms
Transparent tiering facilitates predictable costing for resale planning.
Packaging & Logistics Overview
Protective hard-case packaging safeguards units during international transit (dimensions: 100 × 53 × 41 cm; 17 kg gross). Single-unit carton format optimizes pallet density for wholesalers.
Lead times commence at 31 days for initial runs (1–50 units) and shorten with scale. Ocean freight via major carriers typically achieves 17–30 day delivery to principal markets. Consolidated tooling shipments further compress per-unit logistics expense, benefiting e-commerce and retail chains.
Certifications & Intellectual Property
The evacuator carries full CE marking and EU regulatory compliance, confirming adherence to essential health, safety, and environmental directives. Supplementary TUV/GS/SGS validations reinforce material and operational integrity.
Proprietary design elements in the telescopic mechanism and vacuum integration undergo ongoing development toward patent protection, providing differentiation in competitive channels.
Q: Which fluids can the evacuator process effectively?
A: The unit is engineered to safely handle a wide range of common automotive fluids, including engine lubricating oils (mineral, synthetic, semi-synthetic), automatic transmission fluid (ATF), gear oils, hydraulic fluids, and engine coolants/antifreeze. The high-grade polypropylene (PP) tank and collection basin provide excellent chemical resistance and long-term durability, preventing swelling, cracking, or material degradation even after prolonged exposure to these fluids.
Q: How does the pneumatic vacuum function?
A: The evacuator uses a reliable venturi-effect pneumatic pump powered by standard workshop compressed air at 8–10 kg/cm² (approximately 114–142 PSI). This generates a consistent vacuum level of up to 0.08 MPa (–0.8 bar), which rapidly draws fluid from the collection basin into the main 20 L tank without any manual pumping or gravity reliance. In practice, this delivers evacuation speeds 3–5 times faster than traditional gravity drainers, significantly reducing service time and eliminating mess during transfer.
Q: Does the unit accommodate varied workshop layouts?
A: Yes — the telescopic stand offers smooth, stepless height adjustment from 980 mm to 1600 mm, allowing perfect positioning under vehicles on two-post lifts, four-post lifts, scissor lifts, or even on the ground. Combined with the 360° swivel casters and rigid rear wheels, the unit provides excellent maneuverability in tight bays, narrow aisles, or multi-vehicle service areas, making it highly adaptable to different shop configurations and vehicle types.
Q: What after-sales support applies?
A: Every unit is backed by a full 12-month warranty covering manufacturing defects and material failures under normal use. For distributors and wholesalers, we maintain a streamlined replacement process: upon receipt of a valid claim (photos + description), we arrange prompt shipment of a replacement unit or critical components at no additional freight cost within the warranty period, minimizing your downtime and preserving customer satisfaction.
Q: Is customization feasible for private labeling?
A: Absolutely. Starting at 100-unit orders, we offer comprehensive OEM/private-label services, including custom logo printing on the tank and funnel, color matching (subject to MOQ and material availability), and packaging customization (labels, inserts, barcodes). This allows brand owners and large retailers to present the evacuator as part of their own professional tool line with full visual and marketing consistency.
Q: What maintenance preserves performance?
A: Maintenance is intentionally simple and low-effort thanks to the corrosion-resistant PP construction. After each use or at the end of the day, rinse the collection funnel and discharge hose with diesel, kerosene, or a mild compatible solvent to remove residual oil. Avoid harsh acids or aggressive cleaners. No special lubrication or seal replacement is normally required. Periodic visual inspection of the air fittings, hose, and casters ensures continued smooth operation, and the durable materials typically extend service life well beyond the warranty period with basic care.
